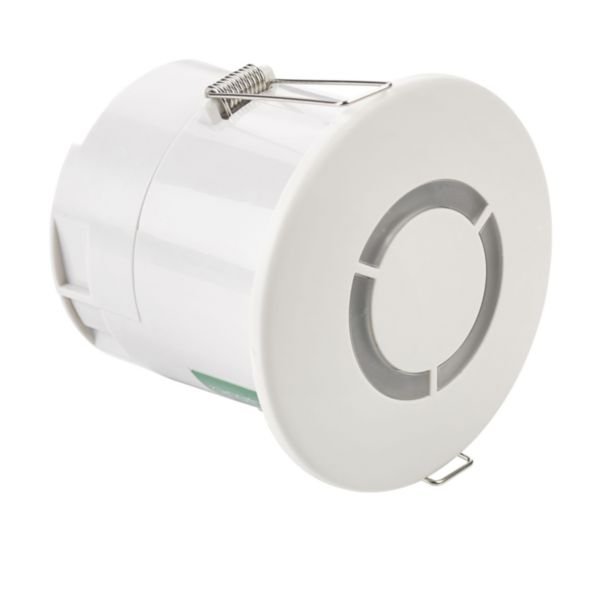

DALI Digital Dimming Microwave Presence Detector | IP40 Rated | Controls 20 Drivers | Flush Mounted Design | @Each of 1 | by CP Electronics
The DALI Digital Dimming Microwave Presence Detector is designed for efficient lighting control in commercial spaces. With IP40 ingress protection and the ability to control up to 20 dimming drivers, this flush-mounted sensor ensures optimal energy savings and convenience. Ideal for automatic lighting in offices and buildings, it features advanced lux level lensing and supports daylight harvesting for enhanced efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI Digital Dimming Microwave Presence Detector | IP40 Rated | Controls 20 Drivers | Flush Mounted Design | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: VITM6-MWS6-DD
Alternatively Known As: Microwave Presence Detector, DALI Dimming Sensor, Ceiling Mounted Occupancy Sensor, IP40 Presence Detector
Technical Specifications
- Detection technology: Microwave presence/absence
- Mounting: Flush ceiling mount or surface mount with back box
- Ingress protection: IP40
- Lead length: 3 meters
- Control protocol: DALI/DSI digital dimming
- Driver control capacity: Up to 20 dimming drivers/ballasts
- Features: Lux level lensing, step-down illuminance, maintained illuminance, two channel control, scene setting and recall, lamp burn-in
- Remote control: Compatible with UHS5, UHS7, UNLCDHS infrared handsets
- Dimensions (H x L x W): 25mm x 60mm x 60mm
- Weight: 0.1 kg
Key Features
- Mid-range microwave presence/absence detection
- Flush mount design for ceiling tiles or surface mounting with back box
- Low profile and unobtrusive design
- DALI/DSI digital dimming with lux level lensing
- Step-down and maintained illuminance for daylight linking/harvesting
- Controls up to 20 dimming drivers/ballasts
- Two channel flexibility with scene setting and recall
- Supports all lighting types
- Lamp burn-in feature
- Optional infrared remote handsets for override control
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic control of lighting in commercial and office buildings
- Heating and ventilation control systems
- Energy-saving presence and absence detection in indoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting and HVAC systems based on occupancy
- Supports daylight harvesting to minimize artificial lighting use
- Digital dimming extends lamp life and reduces power usage
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The CP Electronics DALI Digital Dimming Compact IP40 Ceiling Flush Mounted Microwave Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
