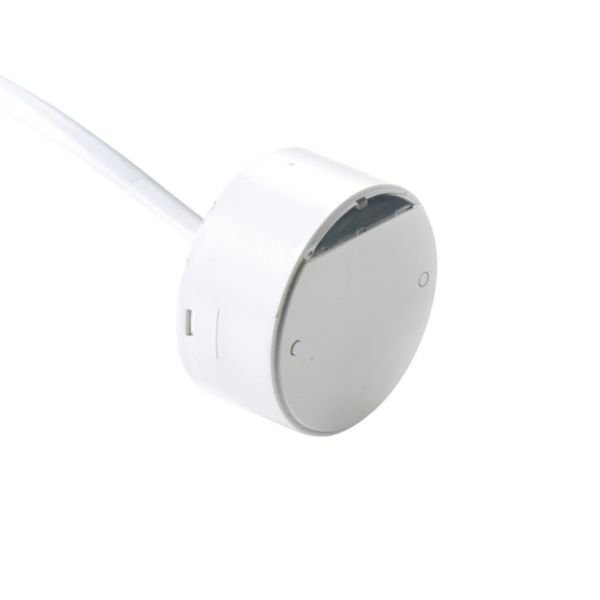

DALI/DSI Digital Dimming Miniature Microwave Presence Detector | IP40 Rated | 360° Detection | 8m Range | @EA of 1 | by CP Electronics
The DALI/DSI Digital Dimming Miniature Microwave Presence Detector is designed for luminaire integration, featuring a 360° detection angle and a maximum range of 8 meters. Ideal for commercial and industrial lighting systems, this IP40-rated sensor ensures energy savings through automatic lighting control and dimming, making it perfect for awkwardly shaped spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming Miniature Microwave Presence Detector | IP40 Rated | 360° Detection | 8m Range | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS5-DD-SL-L03
Alternatively Known As: Miniature Microwave Presence Sensor, DALI Dimming Presence Detector, IP40 Microwave Motion Sensor, Luminaire Presence Detector Head
Technical Specifications
- Detection technology: High frequency microwave sensor
- Detection angle: 360° horizontal
- Maximum detection range: 8 m diameter on floor
- Voltage: 230 V AC, 50 Hz
- Max switching power: 1380 W
- Relay rating: 6A
- Standby current: 3.8 mA
- Operating temperature: -10 to 80 °C
- IP rating: IP40
- Material: Thermoplastic, halogen free
- Mounting method: Surface mounted
- Response value luminosity: 0-2000 lx
- Switch-off delay: 10 seconds
- Switch-on delay: 1 second
- Connection cable length: 300 mm lead
- Dimensions (H x L x W): 39mm x 19mm x 39mm
- Weight: 0.1 kg
Key Features
- Miniature microwave presence detector designed for luminaire mounting
- Compatible with DALI/DSI digital dimming and 1-10V analogue dimming ballasts
- 360° detection angle with a maximum reach of 8 meters diameter on the floor
- Programmable via UHS5 or UNLCDHS handsets
- Supports switching and dimming with lux level lensing
- Adjustable timeout period for absence detection
- Surface mounted with thermoplastic, halogen-free, matt white housing
- IP40 rated for protection against solid objects
- Standby consumption of 3.8 mA
- Nominal voltage 230V AC, frequency 50 Hz
- Max switching power 1380W with 6A relay
- Response value sensitivity and luminosity adjustable
- Suitable for all lighting types including compact fluorescent and fluorescent lamps
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic lighting control in large and awkwardly shaped spaces
- Luminaire integration for presence detection
- Suitable for fluorescent, incandescent, and compact fluorescent lighting
- Ideal for commercial and industrial lighting systems requiring digital or analogue dimming
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings through automatic lighting control and dimming
- Reduces unnecessary power consumption by switching off lights when areas are unoccupied
- Supports daylight harvesting and maintained illuminance to optimize energy use
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics DALI/DSI Digital Dimming Miniature IP40 Microwave Presence Detector Head with 300mm Lead is available for immediate purchase, ideal for integration into luminaires for automated lighting control in commercial and industrial settings.
