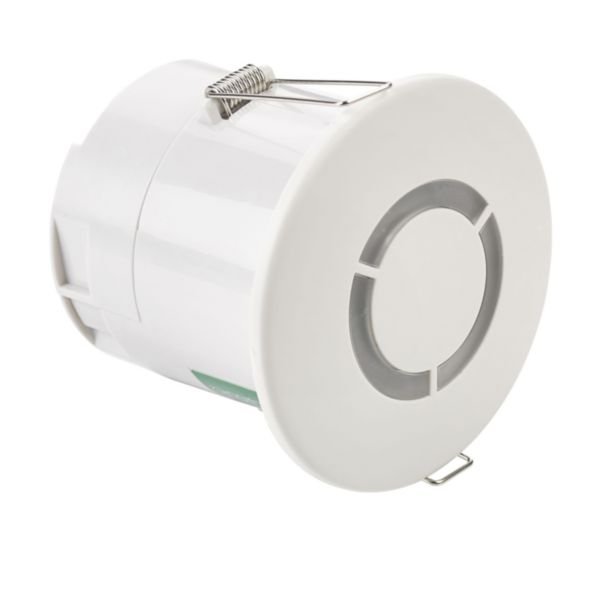

DALI/DSI Digital Dimming Microwave Presence Detector | IP40 Rated | Supports 20 Drivers | Flush Mounted Design | @Each of 1 | by CP Electronics
The DALI/DSI Digital Dimming Microwave Presence Detector is designed for efficient lighting control in commercial spaces. With IP40 protection and the ability to support up to 20 drivers, this flush-mounted sensor offers mid-range microwave detection for presence and absence, ensuring energy savings and optimal lighting conditions. Ideal for corridors, staircases, and open office areas, it integrates seamlessly with DALI/DSI systems for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming Microwave Presence Detector | IP40 Rated | Supports 20 Drivers | Flush Mounted Design | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS6-DD
Alternatively Known As: Microwave Presence Detector, DALI Dimming Sensor, Ceiling Mounted Occupancy Sensor, Digital Dimming Presence Detector
Technical Specifications
- Detection technology: High frequency microwave
- Mounting method: Flush-mounted ceiling
- Degree of protection: IP40
- Impact strength: IK05
- Voltage: 230 V AC, 50 Hz
- Max switching power: 2300 W
- Detection angle: 360° horizontal
- Max reach: 8 m sideways and frontally, 16 m diameter on floor
- Response value luminosity: 0-2000 lx
- Standby consumption: 2.89 mA
- Operating temperature: -10 to 50 °C
- Material: Thermoplastic, halogen free
- Colour: White (RAL 9002)
- Terminals capacity: 2.5 mm²
- Mandatory neutral connection required
- Dimensions (H x L x W): 76mm x 68.5mm x 76mm
- Weight: 0.15 kg
Key Features
- Mid-range microwave presence/absence detection
- Flush mounted low profile design for ceiling tiles
- IP40 rated for indoor use
- Supports up to 20 drivers
- Programmable via UHS5 or UNLCDHS handsets
- Switching and dimming with lux level lensing
- Absence detection and step-down illuminance
- Maintained illuminance with daylight linking/harvesting
- Two channel flexibility and scene setting
- Compatible with all lighting types
- Remote operation with supplied remote control
- Forced switch off and staircase light control
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct integration with DALI/DSI systems.
Applications
- Automatic control of lighting in commercial and office buildings
- Presence and absence detection for energy saving
- Lighting control in corridors, staircases, and open office spaces
- Integration with DALI/DSI digital dimming systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy and ambient light levels
- Supports daylight harvesting to minimize artificial lighting use
- Helps lower carbon footprint through efficient lighting management
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics DALI/DSI Digital Dimming Compact IP40 Ceiling Flush Mounted Microwave Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting automation applications.
