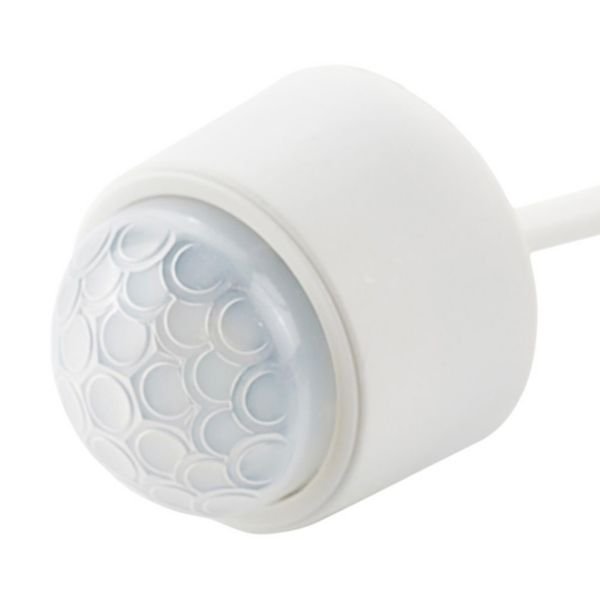

DALI/DSI Digital Dimming Miniature PIR Detector | IP40 Rated | Ceiling Mounted | @Each of 1 | by CP Electronics
The DALI/DSI Digital Dimming Miniature PIR Presence/Absence Detector is designed for efficient commercial lighting control. With an IP40 rating and a high sensitivity PIR sensor, it detects presence and absence effectively, supporting up to 10 drivers. Ideal for ceiling mounting in various indoor environments, this detector is pre-wired for easy installation and programmable via infrared for flexible settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming Miniature PIR Detector | IP40 Rated | Ceiling Mounted | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMHS-DD-SA-C
Alternatively Known As: Miniature PIR Presence Detector, DALI PIR Sensor, Digital Dimming PIR Detector, Ceiling Mounted Occupancy Sensor
Technical Specifications
- IP Rating: IP40
- Detection type: Passive Infrared (PIR)
- Mounting: Ceiling mounted
- Power supply: Supplied with PSU supporting up to 10 drivers
- Dimming control: Compatible with DALI, DSI digital dimming and 1-10V analogue dimming ballasts
- Connection: Pre-wired with RJ11 plug
- Maximum mounting height: 9 meters
- Programming: Infrared programmable
- Dimensions (H x L x W): 40mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Small and unobtrusive design
- High sensitivity PIR sensor for increased detection range
- Ceiling mountable up to 9 meters height
- Supplied pre-wired with RJ11 plug for easy PSU connection
- Flush mounting ring included for simple ceiling installation
- Available with standard or slim-line power supply unit (PSU)
- Infrared programmable for flexible settings
- Compatible with DALI, DSI digital dimming and 1-10V analogue dimming ballasts
- Manufactured in the UK
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Commercial and office lighting control
- Energy-saving presence and absence detection
- Integration with DALI or DSI digital dimming ballasts
- Suitable for ceiling mounting in various indoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on presence detection
- Supports digital dimming for optimized energy efficiency
- Helps lower carbon footprint through intelligent lighting management
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics DALI/DSI Digital Dimming Miniature IP40 Ceiling Mounted PIR Presence/Absence Detector with PSU is available for immediate purchase, ideal for commercial and office lighting control applications.
