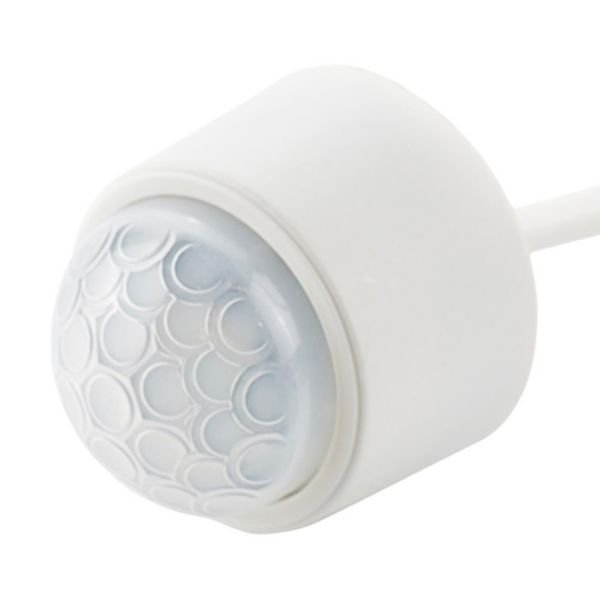

DALI/DSI Digital Dimming Miniature PIR Detector | IP40 Rated | Pre-Wired RJ11 Connection | by CP Electronics
The DALI/DSI Digital Dimming Miniature PIR Presence/Absence Detector is designed for efficient lighting control in commercial spaces. With an IP40 rating and a pre-wired RJ11 connection, it offers seamless integration with various lighting systems. Ideal for energy-saving applications, this unobtrusive sensor features programmable settings and absence detection, ensuring optimal performance and reduced energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming Miniature PIR Detector | IP40 Rated | Pre-Wired RJ11 Connection | by CP Electronics
Brand: CP Electronics
SKU: EBMHS-DD-L03
Alternatively Known As: Miniature PIR Presence Detector, Digital Dimming PIR Sensor, IP40 PIR Occupancy Sensor, Flush Mounted PIR Detector
Technical Specifications
- IP Rating: IP40
- Detection method: Passive Infrared (PIR)
- Mounting height: Up to 9 meters
- Connection: Pre-wired with RJ11 plug
- Power supply options: Standard 6A relay or slim-line 2A relay
- Control types: On/off switching, DALI/DSI digital dimming, 1-10V analogue dimming
- Programmable via UHS5 or UNLCDHS handsets
- Features: Absence detection, step-down illuminance, maintained illuminance, scene setting and recall
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Small and unobtrusive design
- Pre-wired with RJ11 plug for easy connection
- Compatible with incandescent, fluorescent, and compact fluorescent lighting
- Controls DALI or DSI digital dimming ballasts and 1-10V dimming ballasts
- Adjustable timeout period for presence detection
- Two power supply options: standard 6A relay and slim-line 2A relay
- Fully programmable via UHS5 or UNLCDHS handsets
- Features absence detection, step-down illuminance, daylight harvesting, and scene setting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Lighting control in commercial and office buildings
- Energy-saving presence detection for lighting systems
- Integration with DALI/DSI digital dimming ballasts
- Suitable for mounting in luminaires or on surfaces up to 9m height
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching off lights when areas are unoccupied
- Supports daylight harvesting to optimize natural light use
- Compatible with energy-efficient lighting systems
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The CP Electronics DALI/DSI Digital Dimming Miniature IP40 PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial lighting control and energy management applications.
