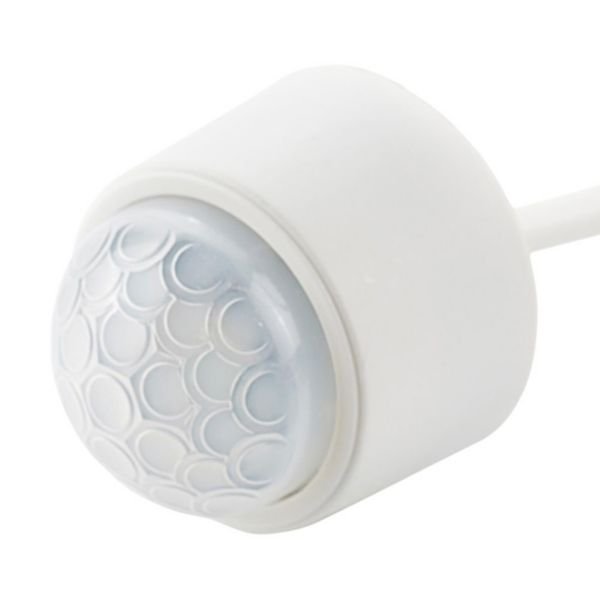

DALI/DSI Digital Dimming Miniature PIR Detector | IP40 Rated | Pre-Wired with RJ11 Plug | by CP Electronics
The DALI/DSI Digital Dimming Miniature PIR Presence/Absence Detector is designed for efficient lighting control in commercial and industrial settings. With an IP40 rating and a pre-wired RJ11 plug, it supports DALI and DSI digital dimming, making it perfect for energy-saving applications. Ideal for mounting at heights up to 9 meters, this unobtrusive sensor features absence detection and daylight harvesting capabilities, ensuring optimal energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming Miniature PIR Detector | IP40 Rated | Pre-Wired with RJ11 Plug | by CP Electronics
Brand: CP Electronics
SKU: EBMHS-DD-L1
Alternatively Known As: Miniature PIR Presence Detector, Digital Dimming PIR Sensor, IP40 PIR Occupancy Sensor, Flush Mounted PIR Detector
Technical Specifications
- IP Rating: IP40
- Mounting Height: Up to 9 meters
- Connection: Pre-wired with 1m lead and RJ11 plug
- Control Types: DALI, DSI digital dimming, and 1-10V analogue dimming
- Relay Rating: Standard power supply 6A relay, slim-line 2A relay
- Detection: Passive Infrared (PIR) sensor
- Programming: Via UHS5 or UNLCDHS handsets
- Features: Absence detection, step-down illuminance, maintained illuminance, scene setting and recall
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Small and unobtrusive design
- Pre-wired with RJ11 plug for easy connection
- Suitable for mounting at heights up to 9m
- Available fixing clips for mounting in or to the side of luminaires
- Controls DALI or DSI digital dimming ballasts and 1-10V dimming ballasts
- Adjustable timeout period for automatic switching off
- Fully programmable via UHS5 or UNLCDHS handsets
- Features absence detection and daylight harvesting
- Two channel flexibility with scene setting and recall
- Supports all lighting types including incandescent, fluorescent, and CFL
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Lighting control in commercial and industrial buildings
- Presence and absence detection for energy saving
- Integration with luminaires for automated lighting management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching off lights when areas are unoccupied
- Supports daylight harvesting to optimize natural light use
- Enhances energy efficiency in lighting systems
Warranty Information
Standard manufacturer warranty applies; typically 2 years.
Available Now
The CP Electronics DALI/DSI Digital Dimming Miniature IP40 PIR Presence/Absence Detector with 1m Lead is available for immediate purchase, ideal for commercial and industrial lighting control applications.
