DALI/DSI Digital Dimming Miniature PIR Presence Detector | IP40 Rated | Flush/Surface Mounted | @Each of 1 | by CP Electronics

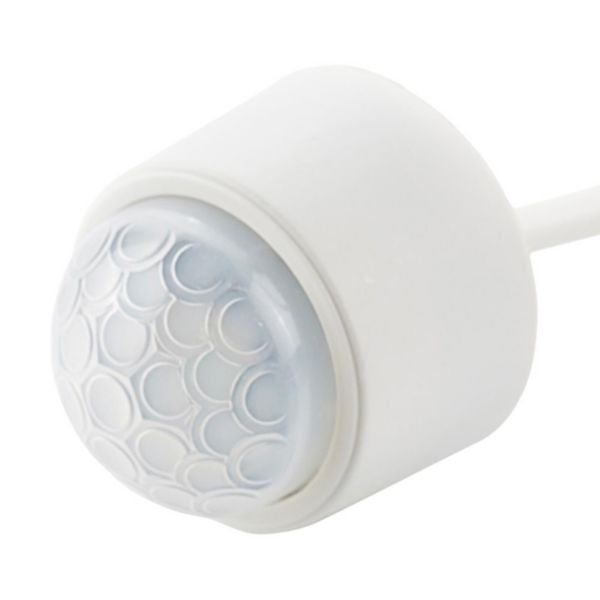

The DALI/DSI Digital Dimming Miniature PIR Presence Detector is designed for efficient lighting control in commercial and office spaces. With an IP40 rating and a 1-meter lead, this flush or surface-mounted sensor utilizes passive infrared technology for reliable presence detection. Ideal for energy-saving applications, it supports DALI and DSI dimming ballasts, ensuring optimal lighting management and reduced energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming Miniature PIR Presence Detector | IP40 Rated | Flush/Surface Mounted | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMHS-DD-SL-L1
Alternatively Known As: Miniature PIR Presence Sensor, Digital Dimming PIR Detector, Flush Mounted PIR Sensor, Surface Mounted PIR Detector
Technical Specifications
- IP Rating: IP40
- Detection method: Passive Infrared (PIR)
- Mounting: Flush or surface mounted
- Lead length: 1 meter
- Compatible with DALI and DSI digital dimming ballasts
- Adjustable timeout for presence detection
- Supports incandescent, fluorescent, and compact fluorescent lighting
- Relay rating: 6A (standard power supply) or 2A (slim-line power supply)
- Programmable via UHS5 or UNLCDHS handsets
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Small and unobtrusive design
- Pre-wired with RJ11 plug for easy connection
- Suitable for mounting at heights up to 9m
- Available fixing clips for mounting in or to the side of luminaires
- Controls DALI or DSI digital dimming ballasts
- Adjustable timeout period for automatic lighting control
- Supports absence detection and daylight harvesting
- Fully programmable via UHS5 or UNLCDHS handsets
- Two channel flexibility with scene setting and recall
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal device performance.
Applications
- Lighting control in commercial and office buildings
- Energy-saving presence detection for indoor lighting
- Integration with luminaires for automated lighting management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching off lights when areas are unoccupied
- Supports daylight harvesting to optimize natural light use
- Helps lower carbon footprint through efficient lighting management
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The CP Electronics DALI/DSI Digital Dimming Miniature IP40 PIR Presence Detector is available for immediate purchase, ideal for commercial and office lighting automation.
