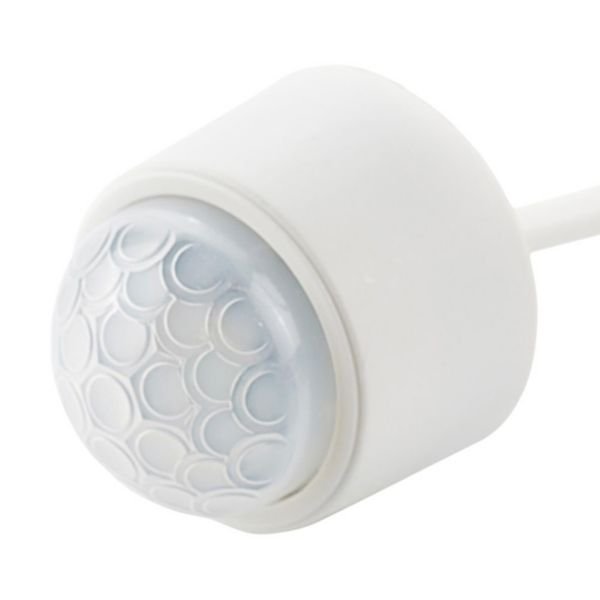

DALI/DSI Digital Dimming Miniature PIR Presence Detector | IP40 Rated | Pre-wired with RJ11 Plug | @Each of 1 | by CP Electronics
The DALI/DSI Digital Dimming Miniature PIR Presence Detector is designed for efficient lighting control in commercial and office environments. With an IP40 rating and a pre-wired RJ11 plug, it supports mounting heights up to 9 meters and features programmable settings for optimal energy savings. Ideal for automated lighting management, this detector enhances energy efficiency by automatically switching off lights in unoccupied areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming Miniature PIR Presence Detector | IP40 Rated | Pre-wired with RJ11 Plug | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMHS-DD-SL-L03
Alternatively Known As: Miniature PIR Presence Detector, DALI Dimming PIR Sensor, Digital Dimming Presence Sensor, Flush Mounted PIR Detector
Technical Specifications
- IP Rating: IP40
- Mounting Height: Up to 9 meters
- Connection: Pre-wired with RJ11 plug
- Power Supply Options: Standard 6A relay or slim-line 2A relay
- Control Types: DALI/DSI digital dimming, analogue 1-10V dimming
- Detection Technology: Passive Infrared (PIR)
- Programmable via UHS5 or UNLCDHS handsets
- Features: Absence detection, step-down illuminance, daylight harvesting, two channel flexibility, scene setting
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Small and unobtrusive design
- Pre-wired with RJ11 plug for easy connection
- Suitable for mounting heights up to 9m
- Multiple fixing clips for flexible mounting options
- Controls incandescent, fluorescent, and compact fluorescent lighting
- Direct dim variant supports DALI or DSI digital dimming ballasts
- Analogue dim variant supports 1-10V dimming ballasts
- Adjustable timeout period for presence detection
- Two power supply options: standard 6A relay and slim-line 2A relay
- Fully programmable via UHS5 or UNLCDHS handsets
- Features absence detection, step-down illuminance, daylight harvesting
- Supports two channel flexibility, scene setting, and lamp burn-in
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Lighting control in commercial and office buildings
- Energy-saving presence detection for indoor lighting
- Integration with luminaires for automated lighting management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching off lights when areas are unoccupied
- Supports daylight harvesting to optimize natural light use
- Enhances energy efficiency in lighting systems
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The CP Electronics DALI/DSI Digital Dimming Miniature IP40 PIR Presence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
