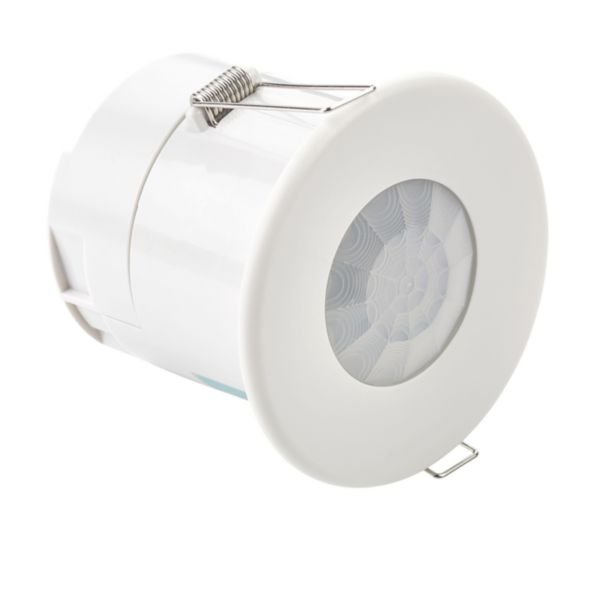

DALI/DSI Digital Dimming PIR Presence Detector | IP40 Rated | 360° Detection | Compact Design | @EA of 1 | by CP Electronics
The DALI/DSI Digital Dimming PIR Presence Detector is designed for efficient lighting control in commercial spaces. With a compact design and IP40 rating, it features 360° detection and supports up to 20 drivers or ballasts. Ideal for energy-saving applications, this sensor automatically adjusts lighting based on presence and ambient light levels, making it perfect for offices and public buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming PIR Presence Detector | IP40 Rated | 360° Detection | Compact Design | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-DD
Alternatively Known As: PIR Presence Detector, Digital Dimming PIR Sensor, Ceiling Mounted Occupancy Sensor, Flush Mounted PIR Detector, DALI Dimming PIR Sensor
Technical Specifications
- Movement sensor technology: Passive infrared (PIR)
- Constant light control: Yes
- Forced switch off: Yes
- Optimum mounting height: 2.8 m
- Max reach sideways/frontally: 3.5 m
- Diameter reach on floor: 7 m
- Remote operation: Yes, with supplied remote control
- Response value sensitivity and luminosity adjustable
- Dim function with dimmer basic element: Yes
- Material: Thermoplastic plastic, halogen free, matt finish
- Colour: White (RAL 9002)
- Degree of protection: IP40
- Impact strength: IK05
- Voltage type: AC 230V, 50 Hz
- Min switch-on time: 0.5 s
- Max duty cycle: 99 min
- Switch-off delay: 10 s
- Switch-on delay: 1 s
- Detection angle horizontal: 360°
- Max switching power: 2300 W
- Number of switching zones: 1
- Max starting current: 80 A
- Control current: 2.72 mA
- Ambient temperature range: -10 to 35 °C
- Standby consumption: 3.51 mA
- Mandatory neutral connection required
- Terminals capacity: 2.5 mm²
- Dimensions (H x L x W): 76mm x 70mm x 76mm
- Weight: 0.15 kg
Key Features
- Compact low profile design for flush ceiling mounting
- Self-contained unit with no external control boxes required
- Pluggable connections for reduced installation time
- Infrared programmable with optional remote handset
- Supports switching and dimming with lux level lensing
- Absence detection functionality with step-down illuminance
- Maintained illuminance for daylight linking and harvesting
- Suitable for all lighting types with two channel flexibility
- Scene setting and recall with lamp burn-in feature
- IP40 rated with IK05 impact resistance
- Nominal voltage 230V AC, frequency 50 Hz
- Detection angle 360° horizontal with 7m diameter floor reach
- Mandatory neutral connection with terminals capacity 2.5 mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct integration with lighting control systems.
Applications
- Lighting control in commercial and office buildings
- Automatic lighting, heating, and ventilation control
- Presence and absence detection for energy saving
- Suitable for ceiling flush mounting in narrow ceiling voids
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on presence and ambient light levels
- Supports daylight harvesting to minimize unnecessary artificial lighting
- Helps lower carbon footprint through efficient lighting management
Warranty Information
Standard manufacturer warranty applies; please refer to CP Electronics for specific warranty terms.
Available Now
The CP Electronics DALI/DSI Digital Dimming Compact IP40 Ceiling Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
