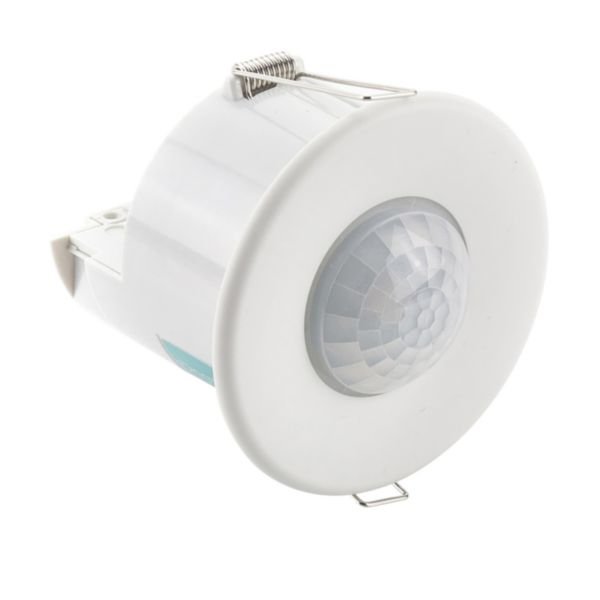

DALI/DSI Digital Dimming PIR Presence Detector | IP40 Rated | 360° Detection | Flush Mounted | @EA of 1 | by CP Electronics
The DALI/DSI Digital Dimming PIR Presence Detector is designed for efficient lighting control in commercial spaces. With a 360° detection angle and an IP40 rating, it ensures reliable presence detection up to 15 meters in diameter. Ideal for energy-saving automation, this flush-mounted sensor features programmable settings and is made from halogen-free thermoplastic for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming PIR Presence Detector | IP40 Rated | 360° Detection | Flush Mounted | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDMR-DD
Alternatively Known As: Digital Dimming PIR Presence Detector, DALI PIR Sensor, Ceiling Mounted Occupancy Sensor, IP40 PIR Detector, Flush Mounted Presence Detector
Technical Specifications
- Detection technology: Passive infrared (PIR)
- Detection angle: 360° horizontal
- Detection range: 7.5 m sideways and frontally, 15 m diameter on floor
- Voltage: 230 V AC, 50 Hz
- Max switching power: 2300 W
- Standby consumption: 3.52 mA
- IP rating: IP40
- Impact rating: IK05
- Operating temperature: -10 to 30 °C
- Material: Halogen free thermoplastic, matt white finish
- Mounting: Flush-mounted ceiling
- Response value luminosity adjustable: 0-2000 lx
- Switch-off delay: 10 seconds
- Switch-on delay: 1 second
- Max duty cycle: 99 minutes
- Mandatory neutral required
- Terminal capacity: 2.5 mm²
- Dimensions (H x L x W): 76mm x 77mm x 76mm
- Weight: 0.15 kg
Key Features
- Mid-range ceiling flush mounted PIR presence/absence detector
- High performance faceted lens for superior detection pattern
- Switching and dimming with lux level lensing
- Programmable via dedicated programming handset
- Absence detection functionality with step-down illuminance
- Maintained illuminance for daylight linking or harvesting
- Suitable for all lighting types with two channel flexibility
- Scene setting and recall with lamp burn-in feature
- Remote operation with supplied remote control
- IP40 rated with IK05 impact resistance
- Halogen free thermoplastic material with matt white finish
- 360° horizontal detection angle with 15 m diameter floor reach
- Mandatory neutral connection with terminal marking indication
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct integration with lighting control systems.
Applications
- Commercial and office lighting control
- Open plan spaces requiring presence detection
- Energy-saving lighting automation
- Daylight harvesting and maintained illuminance control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings through presence detection and daylight harvesting
- Reduces unnecessary lighting usage, lowering power consumption
- Supports dimming to optimize lighting levels and extend lamp life
Warranty Information
Standard manufacturer warranty applies; typically 2 years against defects.
Available Now
The CP Electronics DALI/DSI Digital Dimming Mid Range IP40 Ceiling Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting automation applications.
