DALI/DSI Digital Dimming PIR Presence Detector | IP40 Rated | 40m Detection Range | Flush Mounted | @EA of 1 | by CP Electronics

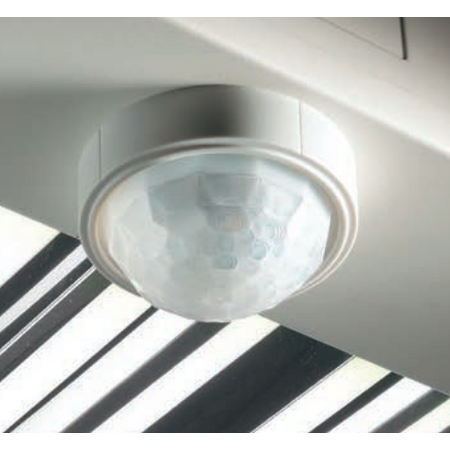

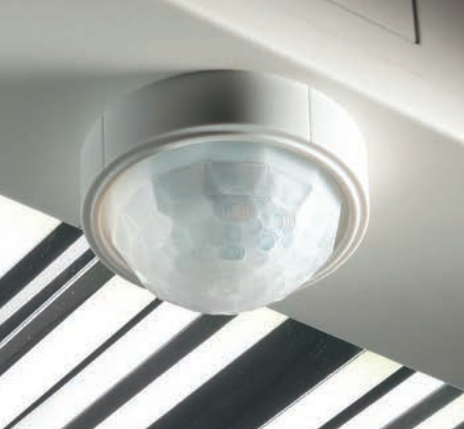

The DALI/DSI Digital Dimming PIR Presence Detector is designed for high bay lighting control, featuring a groundbreaking detection range of up to 40m and an IP40 rating for indoor use. Ideal for warehouses and industrial spaces, this flush-mounted sensor supports DALI/DSI digital dimming ballasts, ensuring energy efficiency through presence and absence detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

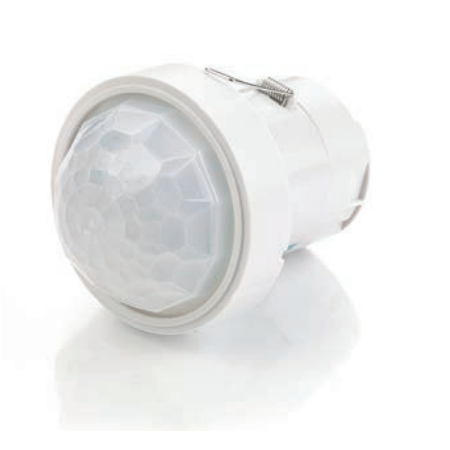

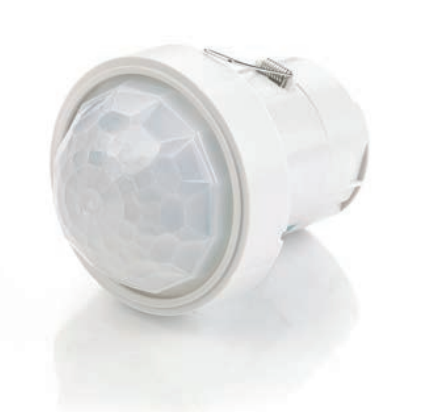

Product Name/Title: DALI/DSI Digital Dimming PIR Presence Detector | IP40 Rated | 40m Detection Range | Flush Mounted | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDHS-DD
Alternatively Known As: High Bay PIR Presence Detector, Digital Dimming PIR Sensor, Flush Mounted PIR Occupancy Sensor, CP Electronics EBDHS-DD
Technical Specifications
- Detection technology: Passive infrared (PIR)
- Detection range: Up to 40m diameter on floor
- Maximum mounting height: 20m
- Detection angle: 360° horizontal
- Voltage: 230V AC, 50Hz
- Max switching power: 2300W
- Control current: 3.48mA
- IP rating: IP40
- Material: Thermoplastic, halogen free
- Operating temperature: -10°C to 35°C
- Standby consumption: 1.3mA
- Mounting method: Flush-mounted
- Adjustable response sensitivity and luminosity
- Supports DALI/DSI digital dimming ballasts
- Switch-off delay: 10 seconds
- Switch-on delay: 1 second
- Dimensions: 88mm x 88mm x 112mm
- Dimensions (H x L x W): 88mm x 112mm x 88mm
- Weight: 0.3 kg
Key Features
- Groundbreaking detection range up to 40m at 15m mounting height
- Maximum mounting height up to 20m
- Unique lens technology for high sensitivity detection
- IP40 rated for indoor use
- Adjustable masking shields to tailor detection zones
- Verify feature reduces false triggering
- Fully programmable via UHS5 or UNLCDHS handsets
- Supports switching and dimming with lux level lensing
- Absence detection functionality
- Step-down illuminance and maintained illuminance (daylight linking/harvesting)
- Suitable for all lighting types including DALI/DSI digital dimming ballasts
- Two channel flexibility and scene setting/recall
- User handset available for on/off, lux levels, and preset scenes
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal sensor performance.
Applications
- High bay lighting control in warehouses
- Industrial and commercial high ceiling areas
- Areas requiring presence/absence detection for lighting efficiency
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings through presence and absence detection
- Supports daylight harvesting to reduce unnecessary lighting
- Programmable settings optimize lighting usage and reduce power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to CP Electronics for specific warranty terms.
Available Now
The CP Electronics DALI/DSI Digital Dimming IP40 High Bay Flush Mounted PIR Presence Detector is available for immediate purchase, ideal for high bay lighting control in warehouses and industrial facilities.
