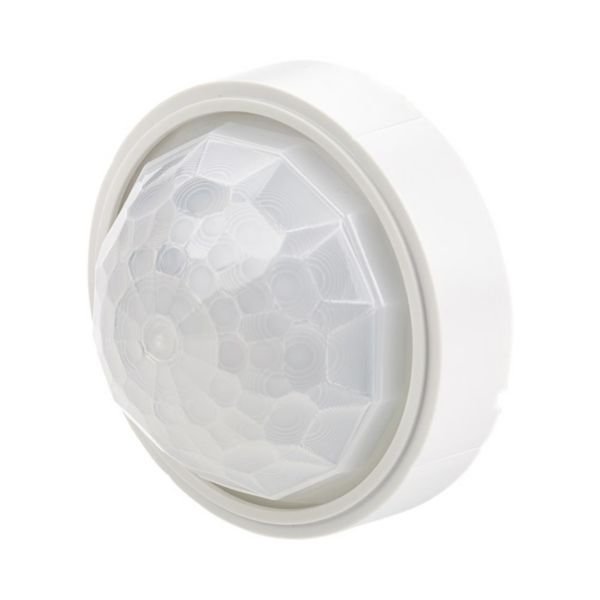

DALI/DSI Digital Dimming PIR Presence Detector | IP40 Rated | 40m Detection Range | Programmable via UHS5 | @Each of 1 | by CP Electronics
The DALI/DSI Digital Dimming PIR Presence Detector is designed for high bay lighting control, featuring an impressive detection range of up to 40m at a 15m mounting height. Ideal for warehouses and industrial spaces, this IP40-rated sensor offers programmable functionality and adjustable masking shields to optimize energy savings and reduce false triggers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming PIR Presence Detector | IP40 Rated | 40m Detection Range | Programmable via UHS5 | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDHS-DH-DD
Alternatively Known As: High Bay PIR Presence Detector, DALI Dimming PIR Sensor, High Level PIR Detector, Digital Dimming Presence Sensor
Technical Specifications
- Detection range: up to 40m at 15m mounting height
- Maximum mounting height: 20m
- Lens technology: unique high sensitivity lens
- IP rating: IP40
- Control types: DALI/DSI digital dimming ballasts
- Programmable via UHS5 or UNLCDHS handsets
- Absence detection and step-down illuminance features
- Two channel flexibility for various lighting types
- Adjustable masking shields included
- Verify feature to reduce false triggers
- Dimensions (H x L x W): 40mm x 80mm x 80mm
- Weight: 0.3 kg
Key Features
- Groundbreaking detection range up to 40m at 15m mounting height
- Maximum mounting height up to 20m depending on operating parameters
- Unique lens technology for high sensitivity within detection range
- Adjustable masking shields to tailor detection zones
- Verify feature reduces false triggering by requiring detection from multiple internal sensors
- Fully programmable functionality via UHS5 or UNLCDHS handsets
- Supports switching/dimming with lux level lensing
- Absence detection functionality
- Step-down illuminance and maintained illuminance with daylight linking/harvesting
- Suitable for all lighting types with two channel flexibility
- Scene setting and recall, lamp burn-in features
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with DALI/DSI systems and high bay lighting controls to ensure correct programming and safety compliance.
Applications
- High bay lighting control in warehouses
- Industrial and commercial high ceiling areas
- Areas requiring precise presence and absence detection for lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings through precise presence and absence detection
- Supports daylight harvesting to reduce unnecessary lighting use
- Programmable settings optimize energy consumption in large spaces
Warranty Information
Standard manufacturer warranty applies; typically 3 years against manufacturing defects.
Available Now
The CP Electronics DALI/DSI Digital Dimming IP40 High Bay PIR Presence/Absence Detector Head is available for immediate purchase, ideal for warehouse and industrial high bay lighting control applications.
