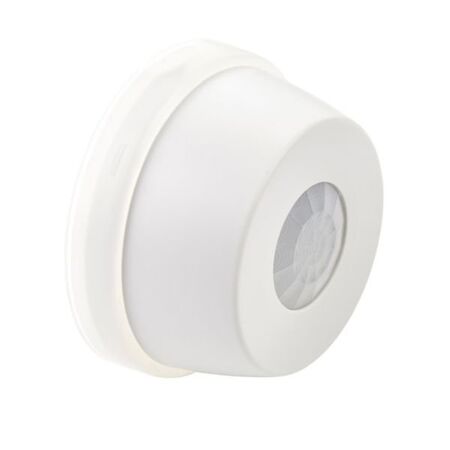

DALI/DSI Digital Dimming PIR Presence Detector | IP54 Rated | Controls Up to 20 Drivers | 360° Detection | @EA of 1 | by CP Electronics
The DALI/DSI Digital Dimming PIR Presence Detector is designed for efficient lighting control in commercial spaces, featuring a compact design and IP54 rating for enhanced durability. With the ability to control up to 20 drivers and a 360° detection angle, it ensures optimal energy savings and automatic lighting adjustments based on presence. Ideal for offices and public buildings, this sensor supports both switching and dimming functionalities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming PIR Presence Detector | IP54 Rated | Controls Up to 20 Drivers | 360° Detection | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSM-DD
Alternatively Known As: PIR Presence Detector, Digital Dimming PIR Sensor, Ceiling Mounted Occupancy Sensor, DALI PIR Detector, Surface Mounted PIR Sensor
Technical Specifications
- Movement sensor technology: Passive infrared
- Constant light control: Yes
- Forced switch off: Yes
- Max. reach sideways/frontally: 3.5 m
- Detection angle horizontal: 360°
- Response value luminosity: 0-2000 lx adjustable
- Max. switching power: 2300 W
- Nominal voltage: 230 V AC, 50 Hz
- Standby consumption: 3.5 mA
- Degree of protection: IP40 (IP54 with gasket)
- Impact strength: IK05
- Operating temperature: -10 to 35 °C
- Material: Halogen free thermoplastic
- Mounting method: Surface mounted
- Terminal capacity: 2.5 mm²
- Mandatory neutral connection required
- Dimensions (H x L x W): 94mm x 50mm x 94mm
- Weight: 0.15 kg
Key Features
- Compact surface mounted PIR detector for presence and absence detection
- Self-contained unit with no external control boxes required
- Infrared programmable with optional remote handset for override
- IP40 rated, upgradeable to IP54 with gasket
- Controls up to 20 drivers/ballasts
- Supports switching and dimming with lux level lensing
- Maintained illuminance with daylight linking and step-down illuminance
- Two channel flexibility with scene setting and recall
- Lamp burn-in function
- Suitable for all lighting types including DALI/DSI digital dimming ballasts
- Surface mounted installation with easy back plate fitting
- Halogen free thermoplastic material with matt white finish
- 360° detection angle with 7m diameter reach on floor
- Adjustable response sensitivity and luminosity
- Forced switch off and staircase light controller functionality
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal device performance.
Applications
- Lighting control in commercial and office buildings
- Automatic lighting, heating, and ventilation control
- Energy-saving presence and absence detection for indoor environments
- Suitable for use with DALI or DSI digital dimming ballasts
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on presence
- Supports daylight harvesting to minimize unnecessary lighting use
- Helps lower carbon footprint through efficient lighting management
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics DALI/DSI Digital Dimming Compact IP54 Ceiling Surface Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
