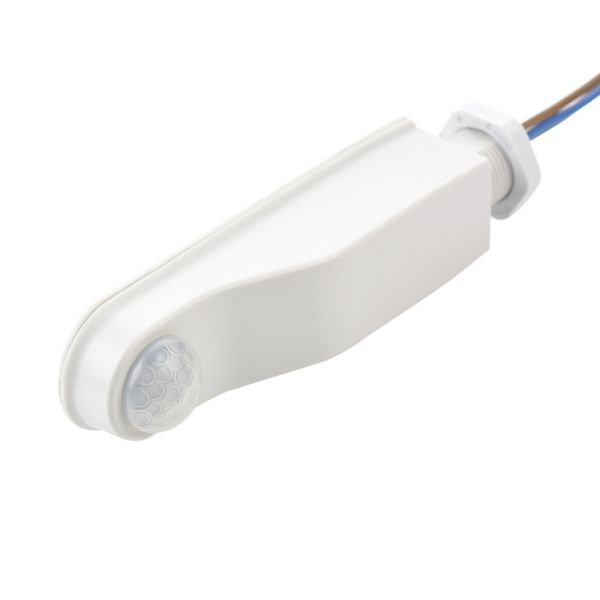

DALI/DSI Digital Dimming PIR Presence Detector | IP65 Rated | Controls Up to 10 Drivers | Easy Retrofit Installation | @Each of 1 | by CP Electronics
The DALI/DSI Digital Dimming PIR Presence Detector is designed for efficient lighting control in commercial and industrial settings. With an IP65 rating, it’s perfect for outdoor and wet areas, detecting movement up to 7 meters high and controlling up to 10 drivers. This integrated unit offers programmable features and energy savings through automatic dimming and daylight harvesting, making it an ideal retrofit solution for existing luminaires.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming PIR Presence Detector | IP65 Rated | Controls Up to 10 Drivers | Easy Retrofit Installation | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMPIR-MB-DD
Alternatively Known As: PIR Presence Detector, Digital Dimming PIR Sensor, Luminaire Mounted PIR Detector, Retrofit PIR Sensor, IP65 PIR Presence Sensor
Technical Specifications
- Movement sensor technology: Passive infrared
- Constant light control: Yes
- Forced switch off: Yes
- Optimum mounting height: 7 m
- Max. reach sideways/frontally: 8 m
- Detection diameter on floor: 16 m
- Response value luminosity adjustable: Yes (0-2000 lx)
- Switch-off delay: 10 s
- Switch-on delay: 1 s
- Detection angle horizontal: 360°
- Max. switching power: 460 W
- Nominal voltage: 230 V AC, 50 Hz
- Standby consumption: approx. 2.24 mA
- Degree of protection: IP65
- Impact strength: IK05
- Material: Thermoplastic, halogen free, matt white (RAL 9002)
- Operating temperature: -10 to 35 °C
- Mandatory neutral connection required
- Dimensions (H x L x W): 28mm x 144mm x 33mm
- Weight: 0.1 kg
Key Features
- Batten mount retrofit system for easy installation
- Integrated unit with no separate power supply required
- IP65 rated for outdoor and wet area use
- Movement detection up to 7 metres high
- Controls up to 10 drivers
- Programmable via UHS5 or UNLCDHS handsets
- Supports switching/dimming with lux level lensing
- Maintained illuminance with daylight linking or harvesting
- Step-down illuminance and scene setting capabilities
- Two channel flexibility and lamp burn-in function
- Pre-wired with 1m cable length and supplied with fitting kit
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct integration with existing lighting systems.
Applications
- Retrofit upgrades for existing batten style luminaires
- Outdoor and wet/wash-down areas due to IP65 rating
- Automatic lighting control in commercial and industrial buildings
- Suitable for use with DALI, DSI digital dimming ballasts and 1-10V dimming ballasts
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy savings through automatic lighting control and dimming
- Reduced power consumption by maintaining illuminance only when needed
- Supports daylight harvesting to minimize artificial lighting use
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics DALI/DSI Digital Dimming Miniature Retrofit IP65 Ceiling Luminaire Mounted PIR Presence Detector is available for immediate purchase, ideal for retrofit lighting control in commercial and industrial applications.
