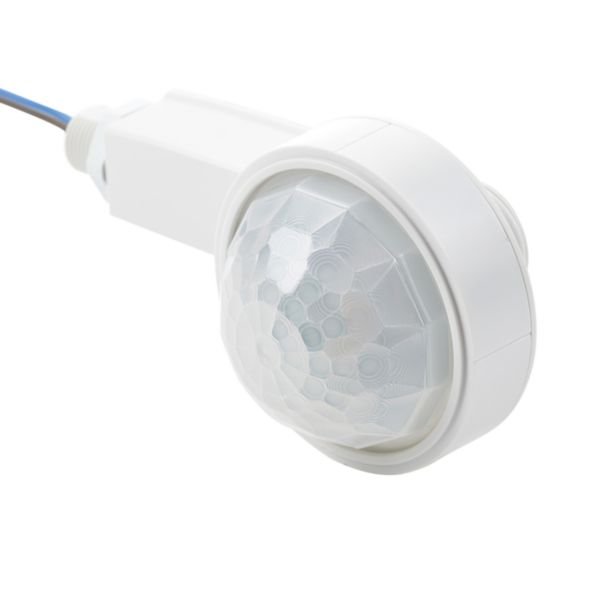

DALI/DSI Digital Dimming Retrofit IP65 High Bay PIR Detector | 40m Detection Range | Adjustable Lux Level | by CP Electronics

BRAND: CP Electronics
SKU: EBDHS-MB-DD
$461.30 List price: $574.80
+ −
30 Days Return Delivery Options
The DALI/DSI Digital Dimming Retrofit IP65 High Bay PIR Presence Detector is designed for high bay lighting control, featuring a groundbreaking detection range of up to 40m and adjustable lux level settings. Ideal for warehouses and industrial spaces, this sensor ensures energy savings through presence detection and supports various lighting types, making it a versatile choice for commercial applications.

Product Name/Title: DALI/DSI Digital Dimming Retrofit IP65 High Bay PIR Detector | 40m Detection Range | Adjustable Lux Level | by CP Electronics

Brand: CP Electronics

SKU: EBDHS-MB-DD

Alternatively Known As: High Bay PIR Presence Detector, DALI Dimming PIR Sensor, Digital Dimming Presence Detector, Luminaire Mounted PIR Sensor

Technical Specifications
  • Detection technology: Passive infrared
  • Detection range: Up to 40m diameter on floor
  • Mounting height: Optimal 15m
  • IP rating: IP65 for damp and wash-down environments
  • Voltage: 230V AC, 50Hz
  • Max switching power: 460W
  • Response value luminosity adjustable: 0-2000 lx
  • Switch-off delay: 10 seconds
  • Switch-on delay: 1 second
  • Standby consumption: 1.1 mA
  • Material: Thermoplastic, halogen free
  • Colour: White (RAL 9002)
  • Degree of impact strength: IK05
  • Mandatory neutral required
  • Cable length: 1000mm supplied
  • Dimensions (H x L x W): 74mm x 172mm x 88mm
  • Weight: 0.3 kg
Key Features
  • Groundbreaking detection range up to 40m at 15m mounting height
  • Unique lens technology for high sensitivity within detection range
  • IP65 rated for damp and wash-down areas
  • Quick install via M20 gland with adjustable masking shields
  • Supports switching/dimming with lux level lensing
  • Programmable via UHS5 or UNLCDHS handsets
  • Compatible with incandescent, fluorescent, compact fluorescent, and LED lighting
  • Direct dim variant controls DALI or DSI digital dimming ballasts
  • Analogue dim variant controls 1-10V dimming ballasts
  • Two channel flexibility and scene setting/recall
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
  • High bay and high level lighting control in warehouses
  • Factories and industrial spaces with increased mounting heights
  • Commercial luminaires and basic battens retrofit
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy savings through presence detection and daylight linking
  • Reduced unnecessary lighting usage lowers carbon footprint
  • Supports LED and energy-efficient lighting control
Warranty Information

Standard manufacturer warranty applies; typically 2 years against manufacturing defects.

Available Now

The CP Electronics DALI/DSI Digital Dimming Retrofit IP65 High Bay PIR Presence Detector is available for immediate purchase, ideal for industrial and commercial high bay lighting control applications.
