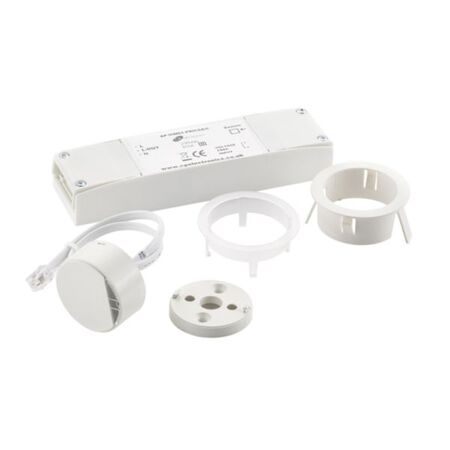

DALI/DSI Digital Dimming Standard PSU | IP40 Rated | Microwave Presence Detection | Supports 10 Drivers | @Each of 1 | by CP Electronics

BRAND: CP Electronics
SKU: MWS5-PSU-DDR
$204.50 List price: $254.80
+ −
30 Days Return Delivery Options
The DALI/DSI Digital Dimming Standard PSU features microwave presence detection for automatic lighting control, making it ideal for commercial and industrial applications. With support for up to 10 drivers and programmable via UHS5 or UNLCDHS handsets, this PSU enhances energy efficiency and ensures optimal lighting in large spaces.

Product Name/Title: DALI/DSI Digital Dimming Standard PSU | IP40 Rated | Microwave Presence Detection | Supports 10 Drivers | @Each of 1 | by CP Electronics

Brand: CP Electronics

SKU: MWS5-PSU-DDR

Alternatively Known As: Microwave Presence Detector PSU, DALI Dimming Presence Sensor, Luminaire Presence Detector, CP Electronics MWS5 PSU

Technical Specifications
  • Detection method: Microwave sensor
  • Relay rating: 6A (standard PSU), 2A (slim-line PSU)
  • Control types: DALI/DSI digital dimming, analogue 1-10V dimming, switching
  • Maximum drivers supported: Up to 10
  • IP rating: IP40
  • Programmable via UHS5 or UNLCDHS handsets
  • Lux level lensing and step-down illuminance
  • No background monitoring or acoustic sensor
  • Connection cable length: 0 mm (no cable included)
  • Dimensions (H x L x W): 40mm x 120mm x 100mm
  • Weight: 0.3 kg
Key Features
  • Microwave presence detection for automatic lighting control
  • Compatible with DALI/DSI digital dimming ballasts
  • Supports up to 10 drivers with in-rush relay
  • Programmable via UHS5 or UNLCDHS handsets
  • Presence and absence detection with adjustable timeout
  • Optional manual control via external switch (standard PSU)
  • Slim-line power supply option for compact luminaire mounting
  • Two channel flexibility with scene setting and recall
  • Suitable for incandescent, fluorescent, and compact fluorescent lighting
  • Daylight harvesting and maintained illuminance features
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal system performance.
Applications
  • Commercial and industrial lighting control
  • Large spaces with complex layouts
  • Luminaire integration for presence/absence detection
  • Automatic lighting control with manual override
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Reduces energy consumption by automatically switching off lights when areas are unoccupied
  • Supports daylight harvesting to optimize natural light use
  • Enhances lighting efficiency and reduces carbon footprint
Warranty Information

Standard manufacturer warranty applies, typically 3 years against defects.

Available Now

The CP Electronics MWS5-PSU-DDR is available for immediate purchase, ideal for commercial and industrial lighting control applications.
