DC Micro Connector 8 Pin | 24AWG | IP69K Rated | 2m Length by NHP
DC micro connector with 8-pin configuration and 24AWG wire—ideal for industrial automation and commercial equipment interfacing. Built for reliable connectivity, with IP69K protection and 2m length for versatile use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

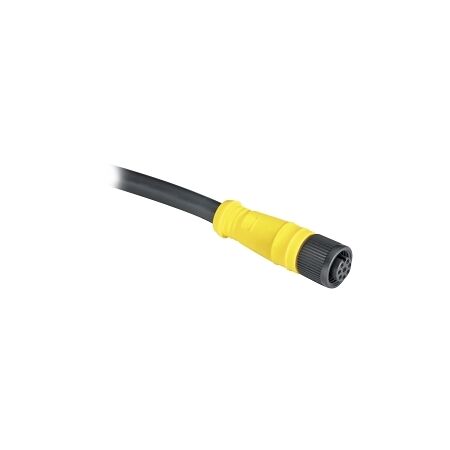

Product Name/Title: AB 889D Cordset PVC Black 8 Pin 24AWG DC Micro Male Straight DC Micro Female Straight M12 2m
Brand: NHP
SKU: 889DF8ABDM2
Alternatively Known As: DC Micro Connector, M12 Connector, 8 Pin Connector
Technical Specifications
- Rated Current: 1.5 A
- Rated Voltage: 36 V
- Number of Poles: 8
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP69K
- Mounting Method: Freely positionable
- AWG Size: 24
- Cable Diameter: 14 mm
- Cable Length: 2000 mm
- Operating Temperature: -20-80 °C
- Dimensions (H x L x W): 14mm x 2000mm x 14mm
- Weight: 0.5 kg
Key Features
- 8-pin configuration for versatile connectivity.
- IP69K rated for high protection against dust and water.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, machinery connections
- Commercial: Equipment interfacing, control systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 889D Cordset PVC Black 8 Pin 24AWG DC Micro Connector is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable connectivity.
