Deep LED Downlight Kit 9W 90mm Recessed IC-4 Cover White Domus
Domus Deep LED downlight, recessed, kit, IC-4, 9W, white.
Sign in
Please login to continue to your account.
Alternatively Known As: DEEP-9 LED Downlight Kit, DEEP-9 Barrier Cover Kit, IC-4 Rated LED Downlight
- Input Voltage: 240V AC
- Power: 9W
- Light Output: 840lm at 3000K, 964lm at 4000K, 920lm at 5000K
- Colour Temperature: 3000K, 4000K and 5000K switchable
- CRI: ≥90
- Beam Angle: 60°
- LED Type: SMD
- IP Rating: IP54
- Dimmable: Yes, with a suitable dimmer
- Rated Lifespan: 40,000 hours
- Cut-out Diameter: 88–90mm
- Finish: White
- Included Components: LED driver, flex and plug, IC-4 barrier cover
- Dimensions (H x L x W): 70mm x 100mm x 100mm
- Weight: 0.3 kg
- Deep-set, anti-glare recessed fixed downlight
- Tri-colour output selectable by rear dip switch

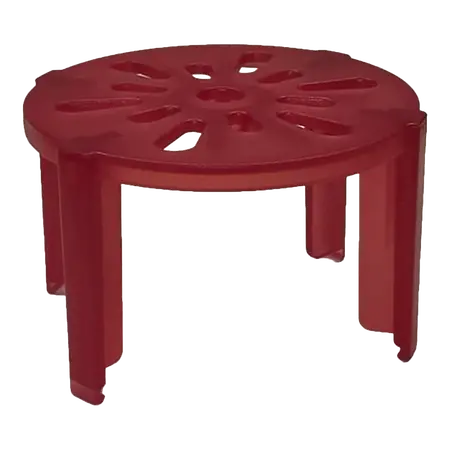

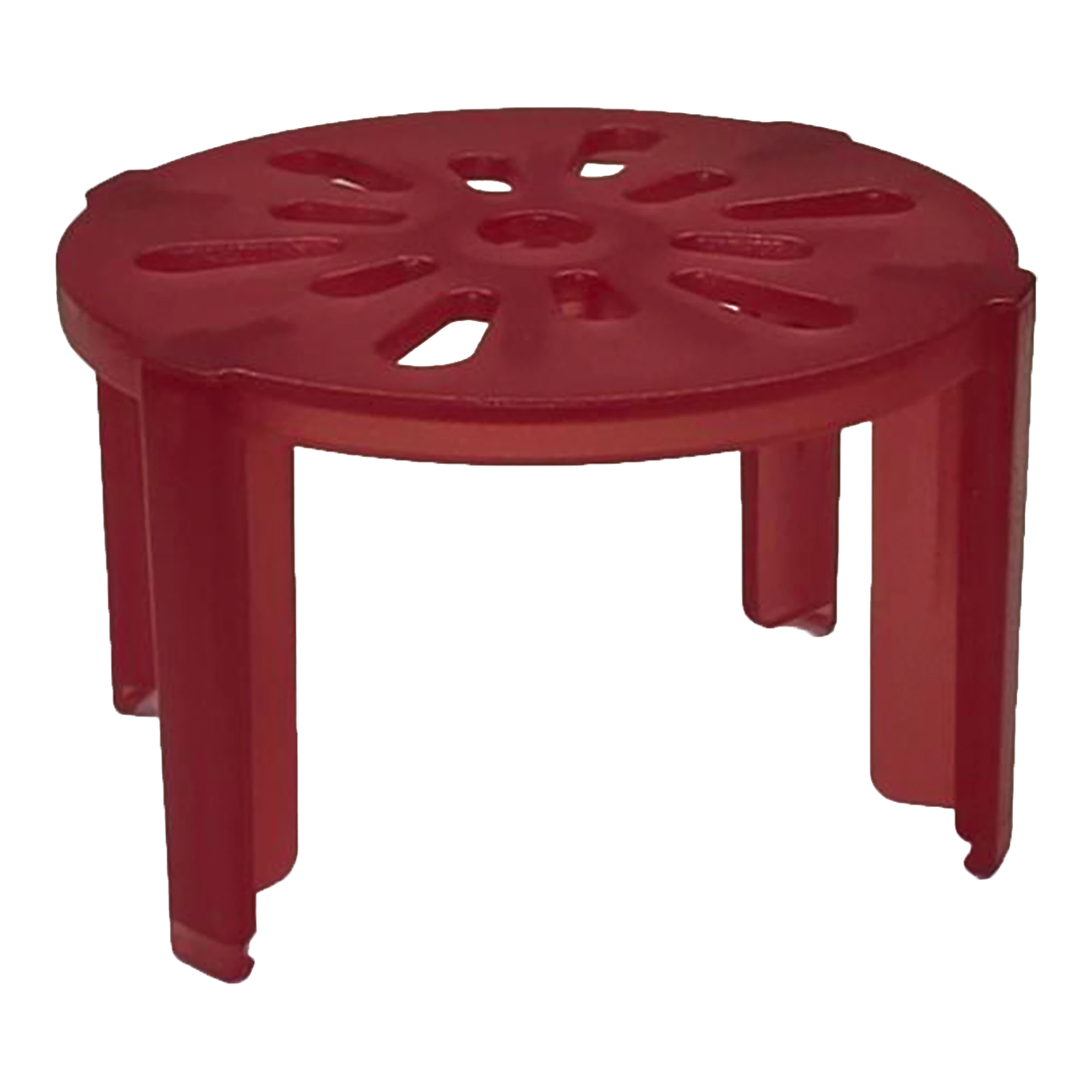

- IC-4 barrier cover permits insulation to abut and cover the fitting when correctly installed
- High colour rendering with CRI of at least 90
- Dimmable with compatible dimmers
- Includes LED driver and flex with plug
- Suitable for residential and commercial interior lighting
- Installation must be performed by a licensed electrician. Follow the manufacturer's installation instructions and applicable Australian electrical installation requirements, including correct treatment of insulation around the IC-4 fitting.
- Residential ceiling lighting
- Commercial interior ceiling lighting
- Living areas, bedrooms, corridors and offices
- Replacement of existing 90mm recessed downlights
- Installations requiring an IC-4-rated downlight under ceiling insulation
- Applicable recessed-luminaire requirements: AS/NZS 60598.2.2:2016, including current amendments
- Installation requirements should be followed in accordance with AS/NZS 3000
- LED technology provides efficient illumination compared with traditional halogen downlights
- 40,000-hour rated lifespan can reduce replacement frequency and associated waste
- IC-4 installation supports continuous ceiling insulation coverage, helping maintain the building's thermal envelope
- Low 9W power consumption can help reduce lighting energy use
Domus Lighting warranty: 5-year replacement warranty for residential applications and 3-year replacement warranty for commercial applications for downlights purchased from 1 May 2023. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
