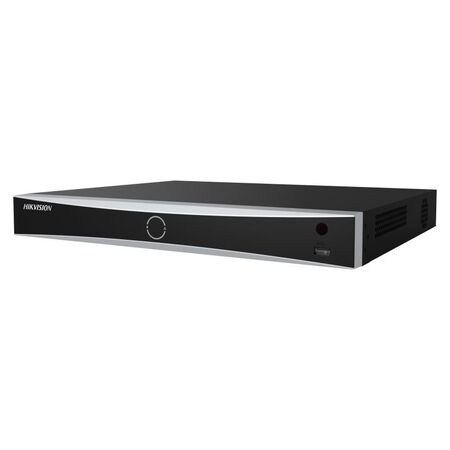

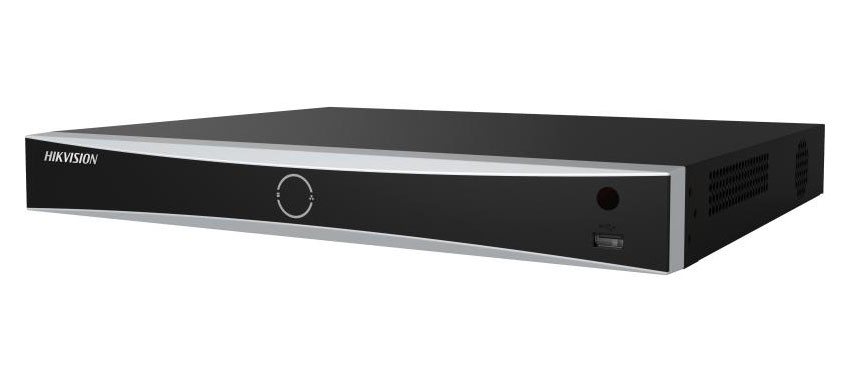

DeepinMind NVR 8 Channel No HDD iDS-7608NXI-M2 Hikvision
Hikvision DeepinMind NVR features 8 channels and no HDD supplied. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DeepinMind NVR, 8-Channel IP NVR, Hikvision iDS-7608NXI-M2/X
Technical Specifications
- Model: iDS-7608NXI-M2/X variant
- Channel Capacity: 8 IP camera channels
- Video Input: Up to 8-channel IP cameras, up to 32 MP resolution
- Decoding Capability: 2-channel at 32 MP, 4-channel at 16 MP or 8-channel at 8 MP
- Video Compression: H.265, H.265+, H.264 and H.264+
- Incoming Bandwidth: 128 Mbps
- Outgoing Bandwidth: 256 Mbps
- Video Output: HDMI up to 8K at 30 Hz, plus VGA and CVBS outputs
- Storage Bays: 2 x SATA interfaces for 3.5-inch HDDs
- Storage Capacity: Up to 16 TB per HDD
- Network Interfaces: 2 x RJ-45 Gigabit Ethernet
- USB Interfaces: 1 x USB 2.0 front and 1 x USB 3.0 rear
- Alarm Interfaces: 4 alarm inputs and 1 alarm output
- Power Supply: 12 VDC, 5 A
- Power Consumption: Up to 50 W without HDD
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% relative humidity
- Certifications and Marks: CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA and BIS
- Dimensions (H x L x W): 52mm x 315mm x 385mm
- Weight: 3 kg
Key Features
- Eight-channel IP video recording for CCTV and security systems
- Deep learning-based intelligent video analytics
- Facial recognition, facial detection and face image comparison functions
- Perimeter protection and AcuSearch support
- Video structuralisation and ANPR support when used with compatible cameras
- Supports up to two user-installed 3.5-inch surveillance HDDs
- H.265+ compression helps reduce storage requirements and network bandwidth
- 8K HDMI output for high-resolution local monitoring
- Dual Gigabit Ethernet ports for network connectivity and redundancy options
- Supplied without a hard disk drive, allowing storage capacity to be selected separately
Professional Installation Requirements
- Installation should be completed by a suitably qualified security systems, communications or electrical contractor. Configure the NVR, network cabling, cameras, storage and any mains-powered equipment in accordance with manufacturer instructions and applicable Australian requirements.
Applications
- Commercial and industrial CCTV systems
- Residential and small-business security installations
- Retail, warehouse and office surveillance
- Facial recognition and perimeter protection systems
- ANPR, people counting and video analytics applications
- High-resolution IP camera recording and monitoring
Standards & Compliance
- AS/NZS 62676: Video surveillance systems for use in security applications
- AS/NZS 3000: Electrical installations, where applicable to the associated electrical installation
- RCM marking requirements under AS/NZS 4417.1 and AS/NZS 4417.2, where supplied for the Australian market
Environmental Benefits
- H.265+ video compression can reduce storage capacity and network bandwidth requirements compared with older compression formats
- RoHS and WEEE declarations support reduced use of restricted substances and responsible end-of-life handling
- User-selectable HDD capacity can reduce unnecessary storage hardware and allow replacement or upgrade without replacing the NVR
- Replaceable storage and modular design can extend the service life of the recorder and reduce electronic waste
Warranty Information
Hikvision Australia lists DeepinMind Series network video recorders under its five-year warranty programme for qualifying products manufactured after 1 March 2022. Confirm eligibility, purchase channel and warranty terms with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electronic security distributors.
