Trade Discount 25%

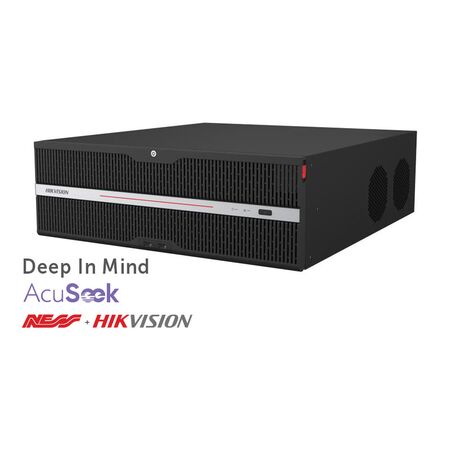

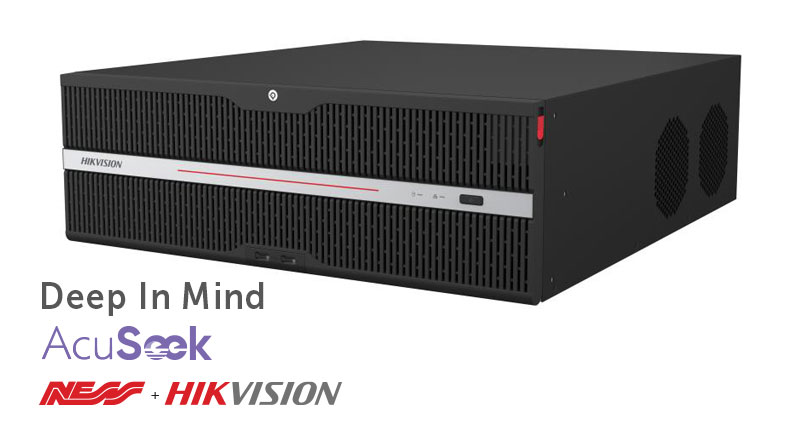

DeepinMind Pro NVR 32 Channel 16 SATA Hikvision
Hikvision DeepinMind Pro NVR features 32 channels and 16 SATA. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DeepinMind Pro NVR, iDS-9632NXI-P16, 32-Channel AI NVR, 16-Bay RAID NVR
Technical Specifications
- Model: iDS-9632NXI-P16
- IP Video Inputs: 32 channels
- Maximum Camera Resolution: Up to 32 MP
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 400 Mbps
- Decoding Capability: Up to 2-ch 32 MP, 4-ch 12 MP, 8-ch 8 MP or 32-ch 1080p
- Video Compression: H.265+, H.265, H.264+ and H.264
- Storage: 16 SATA interfaces for 3.5-inch HDDs
- Maximum HDD Capacity: Up to 20 TB per HDD
- RAID: RAID 0, 1, 5, 6 and 10
- External Storage: 1 × eSATA interface
- Video Output: HDMI 1 up to 8K at 30 Hz; HDMI 2 up to 4K at 60 Hz
- Network Interfaces: 2 × RJ-45 10/100/1000 Mbps Ethernet
- Alarm I/O: 16 inputs and 9 outputs
- USB Interfaces: 2 × USB 2.0 front and 2 × USB 3.0 rear
- Power Supply: 100–240 VAC, 50–60 Hz
- Power Consumption: ≤50 W without HDD
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10–90% RH
- Certifications: CE, IC, CB, RoHS, REACH, WEEE, RCM, UKCA and LOA
- Dimensions (H x L x W): 146mm x 498mm x 442mm
- Weight: 12.5 kg
Key Features
- Supports up to 32 IP cameras and recording resolutions up to 32 MP
- DeepinMind Pro artificial intelligence with Guanlan large-scale AI models
- AcuSeek and AcuSearch functions for intelligent video searching
- Facial recognition for up to 16 video-stream channels or 32 face-picture channels
- Up to 24-channel perimeter protection analytics by the NVR
- Video structuralisation for up to 16 channels
- Supports ANPR, people counting and compatible camera-based analytics
- Sixteen SATA bays for high-capacity surveillance storage
- RAID 0, 1, 5, 6 and 10 support for storage resilience
- 8K HDMI output and up to 16-channel synchronous playback
- H.265+ compression helps reduce storage requirements and network bandwidth
- Rack-mountable 3U professional NVR chassis
Professional Installation Requirements
- Installation should be performed by suitably qualified CCTV, structured-cabling and electrical professionals. Mains connection, rack installation, network configuration, HDD fitting and camera commissioning must follow applicable Australian electrical, cabling and site safety requirements.
Applications
- Commercial CCTV surveillance systems
- Enterprise and industrial security installations
- Transport, infrastructure and large-site monitoring
- High-capacity IP camera recording with RAID storage
- Facial recognition, perimeter protection and video analytics
- Security systems requiring centralised AI-assisted video search
- Retail, warehousing, education and multi-site surveillance deployments
Standards & Compliance
- AS/NZS 62368.1 for applicable audio/video, information and communication technology equipment safety requirements
- RCM marking and EESS requirements apply to in-scope electrical equipment supplied in Australia
Environmental Benefits
- H.265+ video compression can reduce storage capacity and network bandwidth requirements compared with less efficient codecs
- RAID support and replaceable storage drives can extend system service life and reduce premature equipment replacement
- Supports high-density recording in a single chassis, potentially reducing rack space and associated equipment requirements
- RoHS and REACH declarations support reduced use of restricted hazardous substances in the product supply chain
Warranty Information
Hikvision Australia lists the DeepinMind Series under its five-year warranty for eligible premium project-oriented products manufactured after 1 March 2022. Warranty eligibility and terms are subject to the Australian Hikvision warranty policy and authorised distribution channel.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electronic security distributors.
