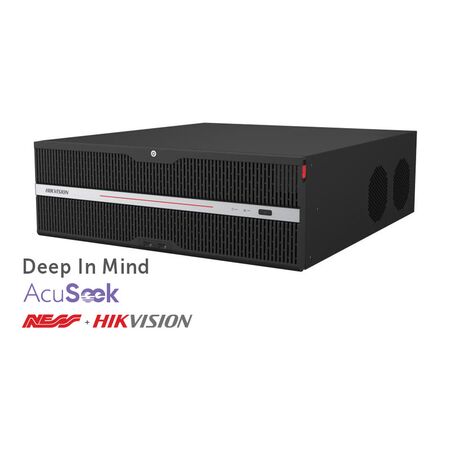

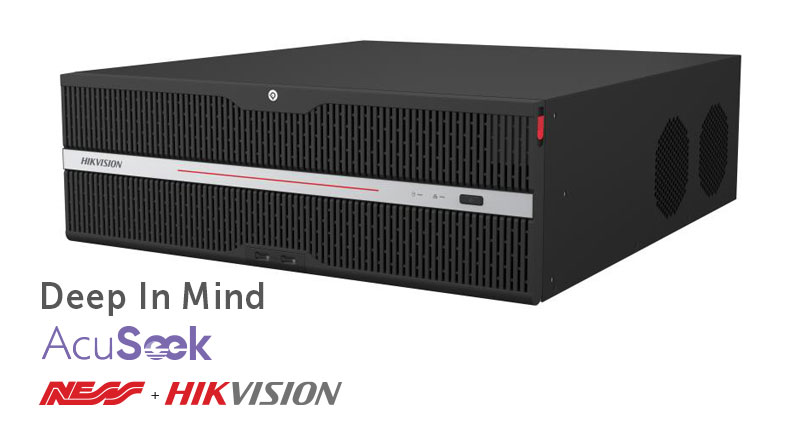

DeepinMind Pro NVR 32 Channel 8 SATA Hikvision
Hikvision DeepinMind Pro NVR features 32 channels and 8 SATA. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DeepinMind Pro NVR, 32-Channel AI NVR, 8-SATA Network Video Recorder, iDS-9632NXI-P8
Technical Specifications
- Model: iDS-9632NXI-P8
- IP Video Input: 32 channels
- Maximum Camera Resolution: Up to 32 MP
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 400 Mbps
- Decoding Capability: Up to 2-channel 32 MP, 8-channel 8 MP or 32-channel 2 MP
- Video Compression: H.265+, H.265, H.264+ and H.264
- Synchronous Playback: 16 channels
- Storage Interfaces: 8 × SATA for 3.5-inch HDDs
- Maximum Storage: Up to 20 TB per HDD
- Expansion Storage: 1 × eSATA interface
- RAID Support: RAID 0, 1, 5, 6 and 10
- Network Interfaces: 2 × RJ-45 10/100/1000 Mbps
- Video Outputs: HDMI, VGA and CVBS
- Primary HDMI Output: Up to 8K at 30 Hz or 4K at 60 Hz
- Alarm I/O: 16 inputs and 9 outputs
- Power Supply: 100–240 VAC, 50–60 Hz
- Power Consumption: ≤50 W without HDDs
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10–90% RH
- Certifications: CE, IC, CB, RoHS, REACH, WEEE, RCM, UKCA and LOA
- Dimensions (H x L x W): 88mm x 540mm x 442mm
- Weight: 8 kg
Key Features
- DeepinMind Pro platform with onboard AI video analytics
- Supports up to 32 IP cameras and recording resolutions up to 32 MP
- AcuSeek and AcuSearch functions for intelligent video investigation
- Facial recognition with support for up to 32 face-image libraries and up to 100,000 face images
- Perimeter protection and video structuralisation functions
- Eight SATA bays with RAID 0, 1, 5, 6 and 10 support
- Dual gigabit Ethernet interfaces for network segregation or redundancy
- 8K-capable HDMI output for high-resolution monitoring
- ONVIF Profile S and G compatibility
- Designed for enterprise, commercial and large-scale CCTV installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security, network or electrical professional. Mains connection, rack mounting, hard-drive installation, network configuration and integration with a CCTV system should follow manufacturer instructions and applicable Australian requirements.
Applications
- Commercial and enterprise CCTV systems
- Shopping centres, campuses and educational facilities
- Warehouses, logistics sites and transport facilities
- Government and critical-infrastructure surveillance
- Security control rooms requiring high-capacity video storage
- CCTV systems requiring facial recognition, perimeter protection or intelligent video search
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance systems for use in security applications, system requirements general
- AS/NZS 62676.1.2:2020 – Video surveillance systems for use in security applications, performance requirements for video transmission
- AS/NZS 62676.4:2020 – Video surveillance systems for use in security applications, application guidelines
Environmental Benefits
- RoHS and WEEE compliance supports restriction of hazardous substances and responsible end-of-life handling
- Eight-bay storage and RAID support can extend system service life by allowing failed drives to be replaced without replacing the recorder
- Supports high-density recording and centralised surveillance management, potentially reducing the number of separate recording appliances required
- Designed for long-term commercial deployment, helping reduce replacement frequency and associated electronic waste
Warranty Information
Hikvision Australia lists the DeepinMind Series among products eligible for a five-year manufacturer warranty for products manufactured after 1 March 2022, subject to the applicable Australian warranty terms and authorised distribution conditions.
Available Now
Available through Hikvision and authorised Australian security, CCTV and networking distributors.
