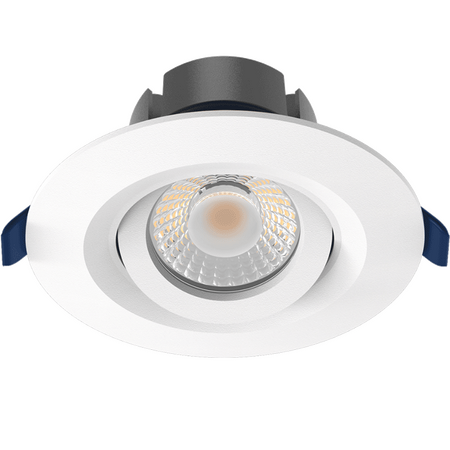

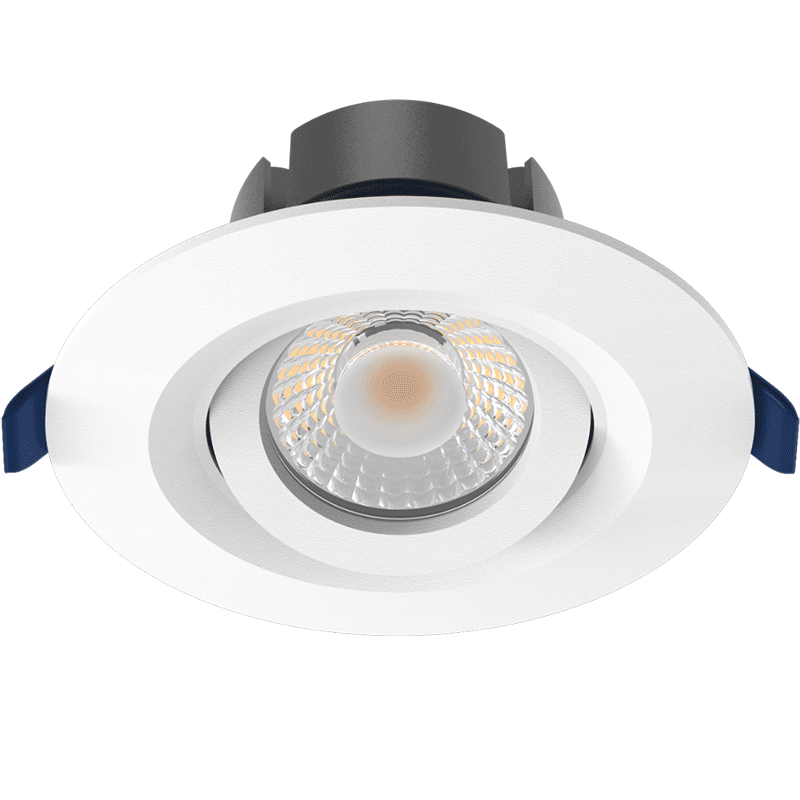

'Detail Nova 9W Adjustable Downlight 27K/3K/4K IP65 White Haneco'
'Haneco Detail Nova downlight features 9W adjustable design, 2700/3000/4000K CCT and IP65 rating with 79-90mm cutout in white. Ideal for bathrooms and eaves.'
Sign in
Please login to continue to your account.
Alternatively Known As: Haneco Detail Nova DETAIL-NV9W, adjustable LED downlight, tritone downlight, moisture-proof downlight
- Power: 9 W
- Lumen Output: 862 / 947 / 949 lm
- Colour Temperature: 2700K / 3000K / 4000K
- Efficacy: 100 / 114 / 109 lm/W
- Dimming: Phase-cut dimmable, trailing edge, 10–100%
- Beam Angle: 55° ±5°
- Colour Rendering: CRI >90
- Adjustable Angle: 0–25°
- IP Rating: IP65 front / IP20 rear
- IC Rating: IC-4
- Input Voltage: 220–240 V AC, 50/60 Hz
- Electrical Classification: Class II
- Connection: 0.9 m flex and plug
- Driver: Remote
- Operating Temperature: -20°C to 45°C
- Lifespan: Over 54,000 hours at 25°C
- Body Colour: White, RAL9010
- Body Materials: Polycarbonate, aluminium alloy and metal
- Diffuser: Clear polycarbonate
- Cut-out Size: 79–90 mm
- Dimensions (H x L x W): 58.5mm x 109mm x 109mm
- Weight: 0.39 kg
- Adjustable gimbal design for directional feature or general lighting
- Selectable 2700K, 3000K or 4000K colour temperature
- IP65 front protection for moisture-prone areas
- IC-4 rated for covered and abutted installations
- Flicker-free LED driver
- Phase-cut dimmable from 10–100% with compatible trailing-edge dimmers
- High colour rendering with CRI above 90
- Overload and short-circuit protection
- Suitable for indoor and covered outdoor applications
- Installation must be carried out by a licensed electrician in accordance with the manufacturer’s instructions, AS/NZS 3000 and applicable local regulations. Ensure bathroom zoning, ceiling clearances and compatible insulation requirements are observed. ([haneco.com.au](https://haneco.com.au/import/downloads/DETAIL-NV9W_DETAIL%20NOVA%20Installation%20Guide.pdf))
- Bathrooms and ensuites
- Laundries and butler pantries
- Entrances and walk-in wardrobes
- Balconies, patios, verandahs and awnings
- Hotel rooms, restaurants, cafés and cocktail lounges
- Kitchens and food preparation areas
- Feature and accent lighting in residential and commercial interiors
- AS/NZS 60598.2.2:2016 – Particular requirements for recessed luminaires
- AS/NZS 60598 series – General requirements for luminaires; Haneco states its LED lighting products comply with applicable Australian and New Zealand electrical safety standards. ([haneco.com.au](https://haneco.com.au/support/faqs/?utm_source=openai))
- LED efficacy of up to 114 lm/W can reduce energy consumption compared with less efficient legacy light sources
- Projected lifespan exceeding 54,000 hours can reduce replacement frequency and associated waste
- IC-4 construction permits compatible insulation to abut or cover the luminaire, helping maintain ceiling thermal performance
- Non-replaceable LED construction reduces lamp replacement requirements over the product lifespan
5-year product warranty against manufacturing defects, provided the product is correctly selected and installed in accordance with Haneco’s instructions. Warranty is supplied as a direct replacement and does not generally cover removal or reinstallation costs. ([haneco.com.au](https://haneco.com.au/import/downloads/DETAIL-NV9W_DATASHEET_DETAIL-NV9W.pdf))
Available through Haneco and authorised Australian electrical wholesalers and distributors.
