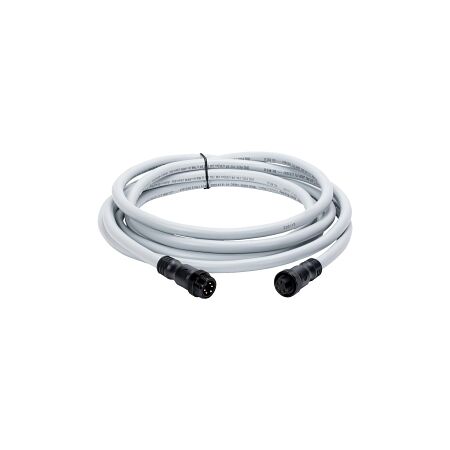

DeviceNet Thick Cable M12 Female 5m 8A 300V IP67 Grey NHP
This NHP thick DeviceNet cable features an M12 female connector for industrial control network connections. It's rated at 8A and 300V with an IP67 rating for dust and water resistance, and comes in a 5m length. The cable complies with AS/NZS 60950 for safety of IT and communication equipment. Add to your order today and ship Australia-wide with SCHNAP's reliable delivery network.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 8 A
- Rated Voltage: 300 V
- Number of Poles: 5
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Polyvinyl chloride (PVC)
- Material of Contact Surface: Gold
- Degree of Protection: IP67
- AWG Size: 18
- Cable Diameter: 12.2 mm
- Cable Length: 5000 mm
- Operating Temperature: -20-70 °C
- Dimensions (H x L x W): 22 mm x 5000 mm x 22 mm
- Weight: 0.5 kg
Key Features
- Rated current: 8 A
- Rated voltage: 300 V
- IP67 protection rating for dust and water resistance
- Freely positionable mounting method
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control networks
- Commercial: Building management systems, data communication
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 1485 DeviceNet Cable Thick Grey Mini Female 5m is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
FAQ
Q: What are the electrical ratings of this DeviceNet cable?
A: It's rated for 8A at 300V, suitable for industrial DeviceNet control networks.
Q: Is this cable protected against dust and moisture?
A: Yes, it has an IP67 rating for dust and water resistance.
For longer runs on the same network, a thick DeviceNet cable in 18m length offers matching gold-plated contacts and IP67 protection.
Trunk line setups can be extended using a DeviceNet KwikLink cable built for the same IP67 industrial standard.
Where a thin cable profile is needed, a thin DeviceNet cable provides similar industrial network wiring for control systems.
