Diffuse Reflective Photoelectric Sensor | 2m Range | IP67 Rated | Infrared Light by NHP
Diffuse reflective photoelectric sensor with a 2m range and IP67 rating—ideal for industrial automation and machinery. Built for reliable detection, with infrared light and durable plastic housing.
Sign in
Please login to continue to your account.

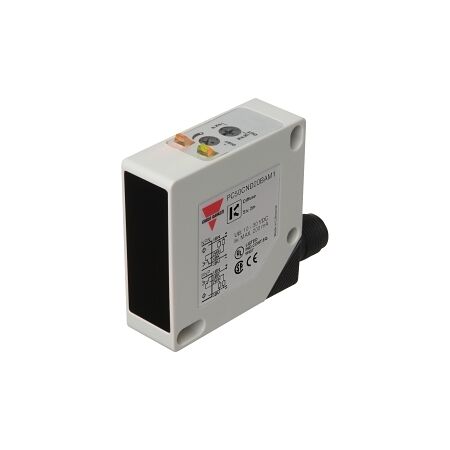

Product Name/Title: Carlo Gavazzi Photoelectric Sensor Diffuse Reflective Plastic Rectangular SN DC NONC Range-2m 5m
Brand: NHP
SKU: PC50CND20BAM1
Alternatively Known As: Diffuse Reflective Photoelectric Sensor, Infrared Photo Sensor
- Voltage Type: DC
- Max Output Current: 0.2 mA
- Response Time: 2.5 ms
- Electric Connection: Connector M12
- Number of Conductors: 4
- Material of Optical Surface: Plastic
- Material Housing: Plastic
- Construction Type Housing: Cuboid
- Degree of Protection: IP67
- Sensing Type: Standard diffuse
- Type of Light: Infrared light
- Type of Optical Signal: Continuous light
- Wavelength of the Sensor: 880 nm
- Beam Angle Field of View: 4 °
- Max Switching Distance: 2000 mm
- Ambient Temperature: -20-60 °C
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.3 kg
- Standard diffuse sensing type for reliable detection.
- IP67 rated for protection against dust and water.
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial automation
- Conveyor systems
- Packaging machinery
- Complies with AS/NZS 60950 for safety and performance standards.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Carlo Gavazzi Photoelectric Sensor Diffuse Reflective is available now for immediate purchase. Ideal for industrial automation and machinery applications.
