Digital Insulation Tester | 20-2000 MΩ Range | 1000V Max Voltage | LCD Display by Eaton

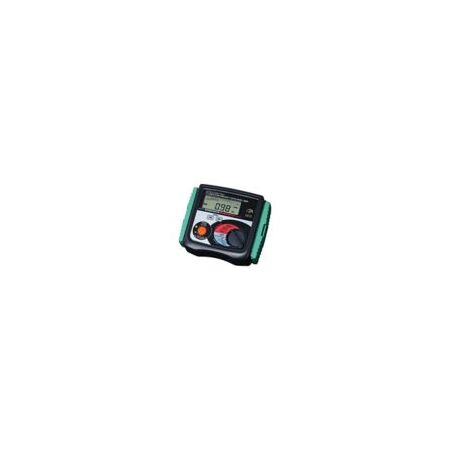

The Kyoritsu 3005A Digital Insulation Tester offers an insulation measurement range from 20 to 2000 MΩ and a maximum test voltage of 1000 V—ideal for electrical maintenance and safety inspections. Built for qualified electricians, it features an LCD display and auto power off for user convenience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Insulation Tester | 20-2000 MΩ Range | 1000V Max Voltage | LCD Display by Eaton
Brand: Eaton
SKU: 03005A129C
Alternatively Known As: Digital Insulation Tester, Insulation Resistance Meter, Insulation Resistance Tester, Kyoritsu 3005A Tester
Technical Specifications
- Insulation measurement range: 20 - 2000 MΩ
- Insulation measurement voltage: 250 V, 500 V, 1000 V
- Measurement current: 200 mA DC
- Short-circuit current DC: 1.5 mA
- Resistance measurement max: 2000 Ω
- AC voltage measurement max: 600 V
- Display type: LCD
- Detection method: Averaging
- Test meter functions: Auto Power Off, Bar Graph Display
- Safety category rating: CAT III 300V
- Certifications: IEC 61557-1, IEC 61557-2, IEC 61557-4, IEC 61010-1, IEC 60529, IEC 61326-1
- Dimensions (H x L x W): 167mm x 185mm x 89mm
- Weight: 0.97 kg
Key Features
- Insulation resistance measurement range from 20 to 2000 MΩ
- Maximum insulation test voltage of 1000 V
- Resistance measurement up to 2000 Ω
- AC voltage measurement up to 600 V
- Continuity buzzer for easy circuit testing
- Auto power off and bar graph display for user convenience
- LCD display for clear readings
- Safety category rating CAT III 300V
Professional Installation Requirements
- Professional use recommended; testing should be performed by qualified electricians or technicians trained in electrical safety and insulation testing.
Applications
- Electrical maintenance and testing
- Industrial equipment insulation testing
- Electrical safety verification
- Continuity and resistance measurement in electrical circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Helps ensure electrical systems are safe and efficient, reducing energy waste and preventing electrical faults.
- Durable design reduces the need for frequent replacements, minimizing electronic waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Kyoritsu 3005A Digital Insulation Resistance Tester is available now for immediate purchase. Ideal for electrical maintenance, safety inspections, and industrial applications.
