Digital Multimeter Fully Auto AC/DC | Resistance & Capacitance | CAT IV 600V
Digital multimeter with fully auto AC/DC, resistance, and capacitance—ideal for electrical diagnostics. Built for precision, with CAT IV 600V safety rating and smart functions for versatile measurements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

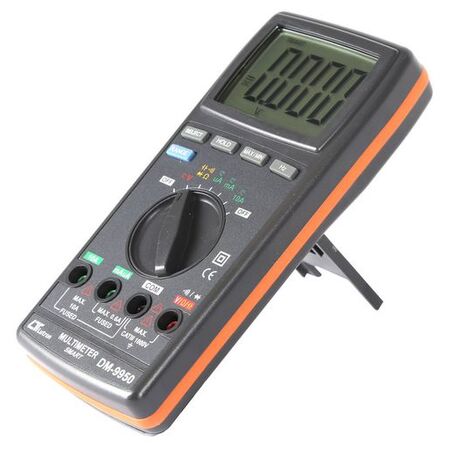

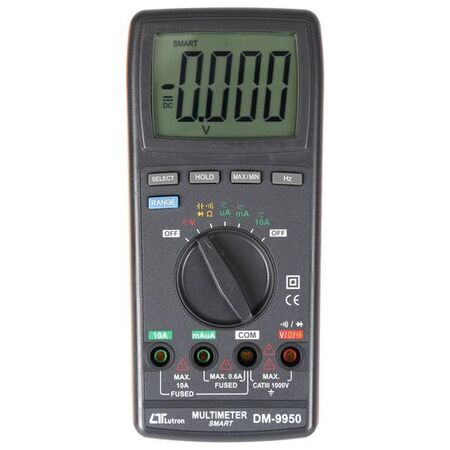

Product Name/Title: Digital Multimeter Fully Auto AC/DC | Resistance & Capacitance | CAT IV 600V
SKU: DM-9950
Alternatively Known As: Digital Multimeter, Auto Range Multimeter, Electrical Tester, Volt Ohm Meter, Capacitance Meter
Technical Specifications
- DC Voltage Accuracy: ±1% from 6V to 1000V
- AC Voltage Accuracy: ±1.2% from 6V to 1000V
- DC Current Accuracy: ±1.2% to 1.5% from 0.6A to 10A
- AC Current Accuracy: ±1.2% to 1.5% from 0.6A to 10A
- Resistance Range: 600Ω to 6MΩ
- Capacitance Range: 6nF to 60μF
- Frequency Range: 40Hz to 1kHz
- Display Size: 64x47mm
- Power Supply: 1 x 9V DC battery
- Dimensions (H x L x W): 185mm x 40mm x 88mm
- Weight: 0.3 kg
Key Features
- Fully auto AC/DC measurement
- Measures ACV, ACA, DCV, DCA, resistance, continuity, frequency, capacitance, and diode
- 6000 counts A/D high resolution
- CAT III 1000V and CAT IV 600V safety rating
- Built-in overload protection for most ranges
- 10 M ohm impedance for voltage circuit
- Smart operation with 5 intelligent functions: V, Ω, uA, mA, A
- Fused 10 A, uA, mA current ranges for safety
- Auto shut off to save battery life
- Includes black and red test leads
Professional Installation Requirements
- No professional installation required; recommended for use by qualified electricians or trained personnel for safety and accuracy.
Applications
- Electrical testing and troubleshooting
- Industrial and commercial electrical maintenance
- Residential electrical diagnostics
- HVAC system diagnostics
- Automotive electrical system testing
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Auto shut off feature conserves battery life reducing waste
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The Lutron DM-9950 Digital Multimeter is available now for immediate purchase. Ideal for electrical testing in residential, commercial, and industrial applications.
