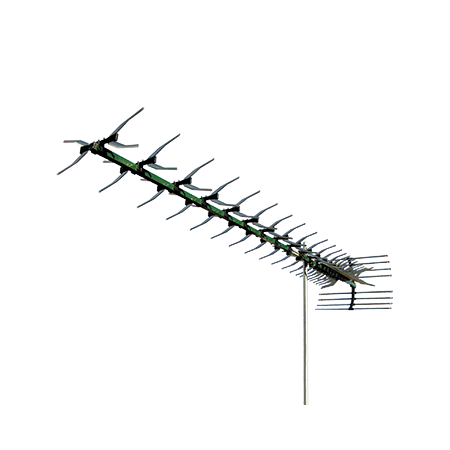

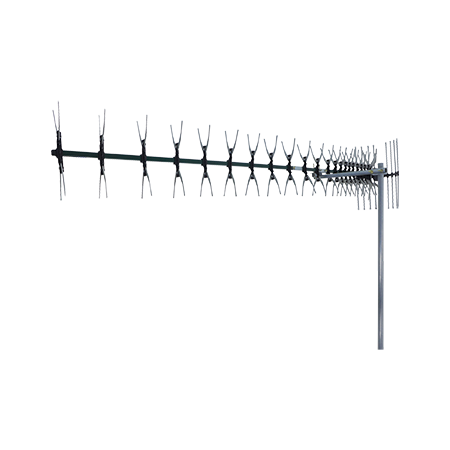

Digital TV Antenna UHF 28-51 | 91 Elements | High Gain | Weather-Resistant by Matchmaster
Digital TV antenna with UHF 28-51 frequency range and high gain—ideal for homes and commercial spaces. Built for superior signal reception, with 91 elements and weather-resistant design for outdoor installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital TV Antenna UHF (28-51) 91 Elements
Brand: Matchmaster
SKU: 02MM-DG91
Alternatively Known As: UHF Digital TV Antenna, 91 Element Yagi Antenna, High Gain TV Antenna, LTE Filtered TV Antenna
Technical Specifications
- Elements: 91
- Band: UHF
- Channels: 28-51
- Frequency Range: 520-694 MHz
- Maximum Gain: 16 dB
- Front/Back Ratio: >26 dB
- Half Power Beam Width Horizontal: 30°
- Half Power Beam Width Vertical: 33.3°
- Wind Loading Horizontal: 109 N
- Boom Length: 2238 mm (Split Boom)
- Balun Type: 'F' Type PCB
- 4G/5G LTE Filter: 694 MHz low pass, >30 dB attenuation at 750 MHz
- Dimensions (H x L x W): 300mm x 2238mm x 2238mm
- Weight: 3.5 kg
Key Features
- High gain 91 element UHF Yagi style antenna
- Built-in 4G/5G LTE filter with >30dB attenuation at 750 MHz
- Constructed from high-grade aluminium and UV stable plastics
- X-type elements for maximum gain and signal stability
- Australian made and designed for harsh Australian environments
- Suitable for both horizontal and vertical installations
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal antenna alignment and signal reception.
Applications
- Residential: Homes requiring digital TV reception in low signal or long-range areas
- Commercial: Offices and businesses needing reliable UHF TV signal reception
- Rural and remote locations with challenging signal environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Improved signal reception reduces power consumption of TV signal boosters
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster Digital TV Antenna UHF (28-51) 91 Elements is available now for immediate purchase. Ideal for residential and commercial use in low signal and long-range reception areas.
