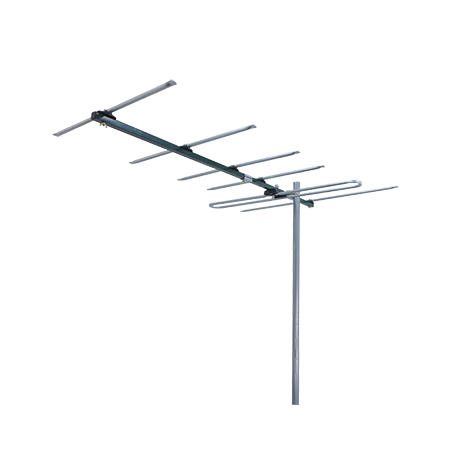

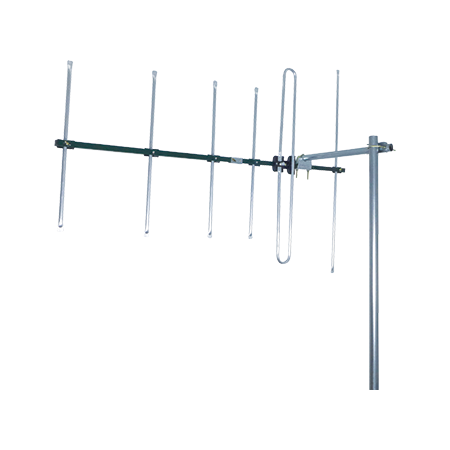

Digital TV Antenna VHF 6-12 | High Gain | 6 Elements | Weather-Resistant by Matchmaster

SKU: 03MM-DR3006
$148.30 List price: $179.50
Free pick up (over 1 meter)
For delivery quote message
Digital TV antenna with VHF 6-12 frequency range and high gain—ideal for homes and offices. Built for superior signal reception, with 6 elements and weather-resistant materials for durability.

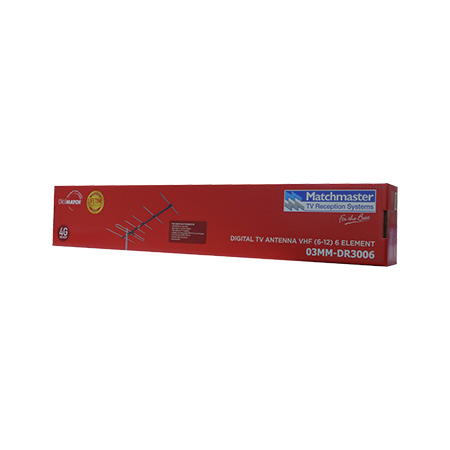

Product Name/Title: Digital TV Antenna VHF (6-12) 6 Elements (Box)

Brand: Matchmaster

SKU: 03MM-DR3006

Alternatively Known As: VHF Yagi Antenna, 6 Element TV Antenna, Digital TV Aerial, VHF Digital Antenna

Technical Specifications
  • Elements: 6
  • Band: Band 3
  • Channels: 6-12
  • Maximum Gain: 8.1dB
  • Front/Back Ratio: 16dB
  • AV VSWR: 1.6:1
  • Boom Dimension: 25 x 19mm
  • Boom Length: 1195mm
  • 4G/5G LTE 652MHz low pass filter included
  • Dimensions (H x L x W): 19mm x 1195mm x 25mm
  • Weight: 1.5 kg
Key Features
  • 6 element VHF Yagi antenna
  • Built-in 4G/5G LTE 652MHz low pass filter to reduce interference
  • Heavy-duty 12.7mm extruded aluminium elements for durability
  • Maximum gain of 8.1dB for improved signal reception
  • Snap lock design for fast and easy installation
  • Front/Back ratio of 16dB for better signal clarity
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended to ensure optimal antenna positioning and signal reception.
Applications
  • Residential: Homes requiring VHF digital TV reception
  • Commercial: Small businesses and offices in metro band three reception areas
  • General: Suitable for areas receiving channels 6-12 and DAB+
Standards & Compliance
  • Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • Durable construction reduces need for frequent replacements, minimizing waste.
  • Built-in LTE filter reduces electronic interference, improving overall signal efficiency.
Warranty Information

Matchmaster Gold Lifetime Manufacturer Warranty.

Available Now

The Matchmaster Digital TV Antenna VHF (6-12) 6 Elements is available now for immediate purchase. Ideal for residential and commercial use in metro band three reception areas.
