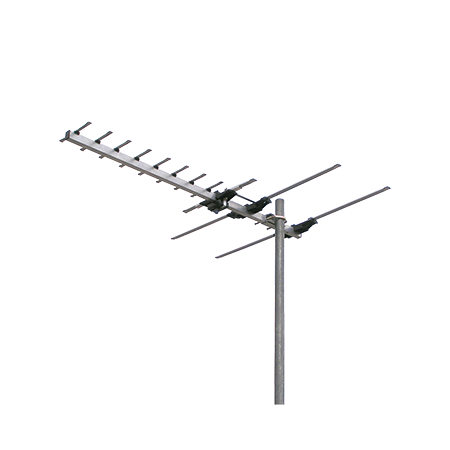

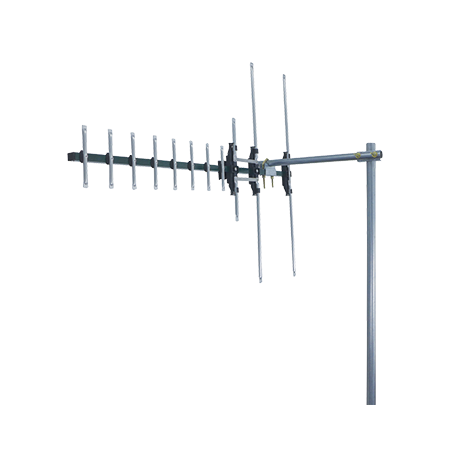

Digital TV Antenna VHF/UHF | 11 Elements | High Gain | Lightweight by Matchmaster

SKU: 01MM-MD11
$107.30 List price: $129.90
Free pick up (over 1 meter)
For delivery quote message
Digital TV antenna with VHF/UHF frequency compatibility and 11 elements—ideal for homes and offices. Built for enhanced signal reception, with a lightweight and durable design.

Product Name/Title: Digital TV Antenna VHF/UHF (6-12)(28-46) 11 Elements

Brand: Matchmaster

SKU: 01MM-MD11

Alternatively Known As: Digital TV Antenna VHF UHF 11 Element Yagi, 4G/5G Filter TV Antenna, Matchmaster MD11 Antenna

Technical Specifications
  • Elements: 11
  • Band: B3, UHF
  • Channels: VHF (6-12), UHF (28-46)
  • Gain: VHF 3dB, UHF 9dB
  • Front/Back Ratio: VHF 6dB, UHF 11dB
  • Balun Type: 'F' Type PCB
  • Low Pass Filter: 652MHz with >40dB attenuation at 750MHz
  • Dimensions (H x L x W): 300mm x 1200mm x 900mm
  • Weight: 1.2 kg
Key Features
  • Australian made
  • Receives channels 6-12 and 28-46
  • Hybrid antenna to maximise gain for wanted channels
  • VHF elements made from 12.7mm diameter extruded aluminium tube for superior strength
  • 652MHz low pass filter with >40dB attenuation at 750MHz to eliminate 4G/5G (LTE) interference
  • Mounting clamp at the balance point to avoid antenna sagging
Professional Installation Requirements
  • Professional installation by a qualified technician or electrician is recommended to ensure optimal antenna positioning and secure mounting.
Applications
  • Residential: Homes requiring digital TV reception
  • Commercial: Small businesses needing reliable TV signal
  • Outdoor: Suitable for rooftop or external mounting
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Improves signal reception reducing the need for multiple antennas and electronic boosters, lowering energy consumption.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Matchmaster Digital TV Antenna VHF/UHF 11 Elements is available now for immediate purchase. Ideal for residential and commercial digital TV reception applications.

Brochure (01mm-md11_brochure.pdf, 366 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
