DIN Busbar Chassis 250A 24 Way | 2Pole Top Feed | Red Black by NHP
DIN busbar chassis with 250A rated current and 24 poles—ideal for industrial power distribution. Built for durability with encapsulated material housing and IP20 protection, perfect for switchboards and control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

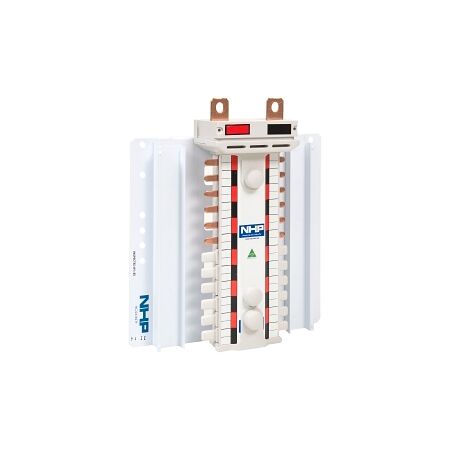

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 24 Way 2Pole Top Feed Red Black
Brand: NHP
SKU: NC224182TF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, NC Busbar Chassis
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 24
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 242mm x 300mm x 100mm
- Weight: 5 kg
Key Features
- 250A rated current for robust power handling.
- 24 poles with 18mm pitch for versatile configurations.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and control panels
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 24 Way 2Pole Top Feed Red Black is available now for immediate purchase, ideal for power distribution in industrial and commercial settings.
