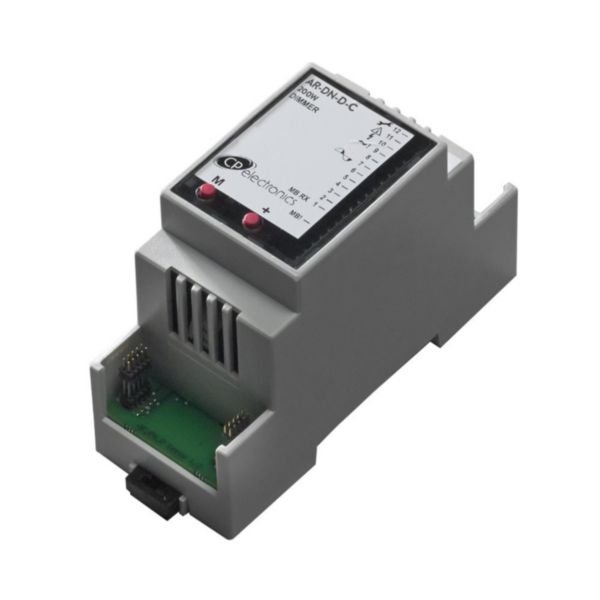

DIN Rail 200W Dimmer | Trailing Edge Design | LED Indication | Halogen Free | @Each of 1 | by CP Electronics
The DIN Rail 200W Dimmer is designed for efficient lighting control, featuring a trailing edge design suitable for capacitive and resistive loads. With LED indication and a halogen-free construction, this dimmer is perfect for commercial and industrial applications, ensuring energy-efficient operation and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIN Rail 200W Dimmer | Trailing Edge Design | LED Indication | Halogen Free | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: AR-DN-D-C
Alternatively Known As: DIN Rail Dimmer 200W, AR-DN-D-C Dimmer, CP Electronics Wireless Dimmer, Trailing Edge Dimmer
Technical Specifications
- Output power: 6-200 W
- Voltage: 220-240 V
- Frequency: 50 Hz
- Max control current: 833 mA
- Mounting method: DIN-rail adaptor
- Number of outputs: 1
- Connection type: Screwed terminal
- Cable section: 2.5 mm²
- Operating temperature: -10 to 40 °C
- Storage temperature: -10 to 40 °C
- Degree of protection: IP rating not specified
- Degree of impact strength (IK): Not specified
- Mandatory neutral required
- LED indication included
- Halogen free
- Dimensions (H x L x W): 90mm x 58mm x 35mm
- Weight: 0.2 kg
Key Features
- Trailing edge dimmer suitable for capacitive and resistive lighting loads
- Compatible with mains voltage lamps, mains dimmable LEDs, and low voltage lamps with electronic transformers
- Over current and thermal protection
- Single output with 6-200W power range
- Screwed terminal connection with 2.5 mm² cable section
- White color, halogen free
- LED indication for status
- Mandatory neutral required
- Parallel service possible
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Lighting control in commercial buildings
- Wireless lighting control systems
- Integration with An-10 wireless lighting control networks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy-efficient lighting control by dimming lights to reduce power consumption
- Supports LED and low voltage lighting which are more energy-efficient than traditional lighting
- Halogen free materials reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics DIN Rail 200W Dimmer AR-DN-D-C is available for immediate purchase, ideal for wireless lighting control applications in commercial and industrial settings.
