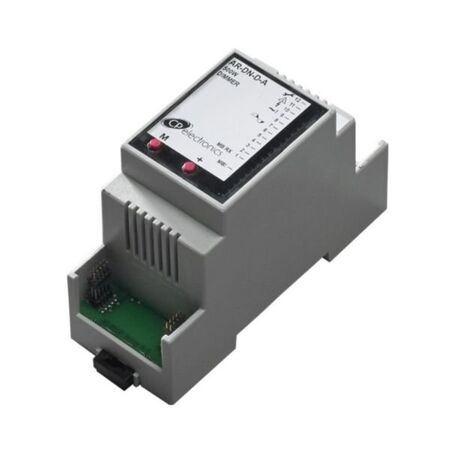

CP Electronics DIN Rail 500W Dimmer | Trailing Edge Design | Over Current & Thermal Protection | Wireless Control | @EA of 1 | by CP Electronics
The CP Electronics DIN Rail 500W Dimmer is a versatile trailing edge dimmer designed for capacitive and resistive lighting loads. Perfect for commercial and industrial applications, it offers over current and thermal protection for enhanced safety. Control your lighting wirelessly with the An-10 Master Controller, making it ideal for modern office buildings and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CP Electronics DIN Rail 500W Dimmer | Trailing Edge Design | Over Current & Thermal Protection | Wireless Control | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: AR-DN-D-A
Alternatively Known As: DIN Rail Dimmer 500W, AR-DN-D-A Dimmer, Wireless Lighting Dimmer, Trailing Edge Dimmer
Technical Specifications
- Power rating: 500W
- Type: Trailing edge dimmer
- Load compatibility: Capacitive and resistive lighting loads, mains voltage lamps, mains dimmable LEDs, low voltage lamps with electronic transformers
- Protection: Over current and thermal protection
- Control: Via An-10 Master Controller using radio or wired communication
- Configuration: UNLCDHS programming handset or ALC commissioning software with An-10 RF PC dongle
- Dimensions (H x L x W): 70mm x 60mm x 90mm
- Weight: 0.3 kg
Key Features
- Trailing edge dimmer suitable for capacitive and resistive lighting loads
- Compatible with mains voltage lamps, mains dimmable LEDs, and low voltage lamps with electronic transformers
- Over current and thermal protection for safety
- Can be controlled via An-10 Master Controller with radio or wired communication
- Configurable using UNLCDHS programming handset or ALC commissioning software
- Supports connection of up to 12 slave output load controllers
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with DIN rail mounting and wireless lighting control systems to ensure compliance with electrical standards and safety.
Applications
- Commercial and industrial lighting control systems
- Wireless lighting automation in office buildings
- Integration with An-10 wireless lighting control systems
- Dimming capacitive and resistive lighting loads including mains voltage lamps and dimmable LEDs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings through precise dimming control
- Supports integration with wireless systems reducing wiring and material use
- Improves lighting efficiency and reduces power consumption
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics DIN Rail 500W Dimmer is available for immediate purchase, ideal for commercial and industrial wireless lighting control applications.
