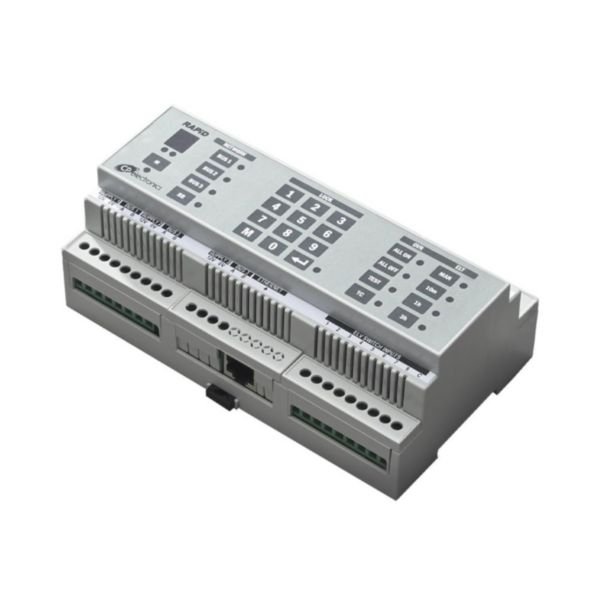

DIN Rail Area Controller Module Ethernet | 3 Switchable Outputs | Onboard Ethernet Port | Built-in Keypad | @Each of 1 | by CP Electronics
The DIN Rail Area Controller Module Ethernet is designed for efficient lighting control in commercial buildings, featuring 3 switchable field BUS outputs and an onboard Ethernet port for seamless integration with building management systems. Ideal for professionals, it includes a built-in site test keypad and supports emergency lighting testing, ensuring compliance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIN Rail Area Controller Module Ethernet | 3 Switchable Outputs | Onboard Ethernet Port | Built-in Keypad | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBR-DIN-AC-ET
Alternatively Known As: DIN Rail Area Controller, RAPID Area Controller Ethernet Module, CP Electronics Lighting Controller
Technical Specifications
- 3 switchable field BUS outputs for connection of floor networks including LCMs, hardwired modules, and DALI gateways
- 3 RJ45 ports for RAPID field BUS monitoring via engineer's laptop
- Onboard Ethernet port for TCP/IP addressability and building network connectivity
- Dual Live, Earth, and Neutral terminals for mains connection and looping
- 8 ELV inputs for direct switch connection
- Integrated volt free output for emergency test or other interfaces
- Time scheduler with battery backup for timed events and emergency lighting test schedules
- Infra-red programming port with activation button and status LED
- Pre-programmed emergency test durations: 3 hours, 1 hour, 10 minutes
- Numerical keypad with PIN lock and three levels of access control
- Status LEDs for each RAPID field BUS network and backbone network
- Dimensions (H x L x W): 90mm x 120mm x 150mm
- Weight: 1.2 kg
Key Features
- Built-in site test keypad with pre-configured test routines including testing of DALI emergency light fittings
- Supports IP networks to unify buildings into one management system
- Outputs addressability of up to three field BUS networks for connection of LCMs, hardwired modules, and DALI gateways
- Fitted with DIN rail enclosure fixed to the mounting surface
- Integrated volt free output for emergency test or other interfaces
- Infra-red programming port for uploading commands with status LED
- Time scheduler with battery backup for timed events and emergency test schedules
- Three levels of access control with PIN lock for engineer, contractor, or facilities management
Professional Installation Requirements
- Professional installation by a qualified electrician or certified lighting control technician is required to ensure proper integration and compliance with electrical standards.
Applications
- Lighting control systems for commercial buildings
- Floor and area lighting management
- Integration with building management systems
- Emergency lighting testing and scheduling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient lighting control reducing energy consumption
- Supports scheduled lighting and emergency test routines to optimize energy use
- Integration with building management systems for smarter energy management
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The CP Electronics DIN Rail Area Controller Module Ethernet is available for immediate purchase, ideal for commercial lighting control and building management system integration.
