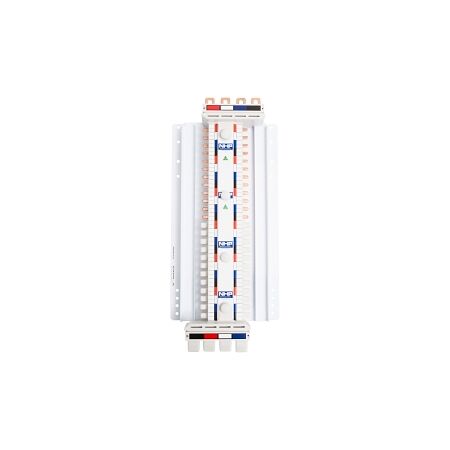

NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 3Pole Plus Neutral Universal RWBN

DIN Rail Busbar 250A 48 Way | 3P+N | IP20 Protection by NHP

BRAND: NHP

SKU: NC248183PNU

$1,690.00 List price: $2,244.10

+ −

30 Days Return Delivery Options

DIN rail busbar with 250A rated current and 48 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated housing and IP20 protection, ensuring reliable performance in switchboards and distribution boards.

Description
Attachments

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 3Pole Plus Neutral Universal RWBN

Brand: NHP

SKU: NC248183PNU

Alternatively Known As: DIN Rail Busbar, Power Distribution Busbar, 250A Busbar Chassis

Technical Specifications

Rated Current: 250 A
Number of Poles: 48
Number of Phases Input: 3P+N
Nominal Voltage: 415 V
Short Time Withstand Current (ICW) 0.1 sec: 25 kA
Short Time Withstand Current (ICW) 0.3 sec: 20 kA
Short Time Withstand Current (ICW) 1 sec: 10 kA
Assembly Arrangement: 18mm pitch
Material Housing: Encapsulated material
Degree of Protection: IP20
Dimensions (H x L x W): 458mm x 82mm x 100mm
Weight: 5 kg

Key Features

250A rated current with 48 poles for versatile applications.
Encapsulated material housing for enhanced durability.
IP20 protection degree suitable for indoor use.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in commercial and industrial settings
Electrical: Suitable for use in switchboards and distribution boards

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Durable construction reduces the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 3Pole Plus Neutral Universal RWBN is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

NC248183PNU-AU-Chassis-NC-DINT-250A-3-Pole-and-Neutral-Universal-Datasheet.pdf (NC248183PNU-AU-Chassis-NC-DINT-250A-3-Pole-and-Neutral-Universal-Datasheet.pdf, 208 Kb) [Download]
