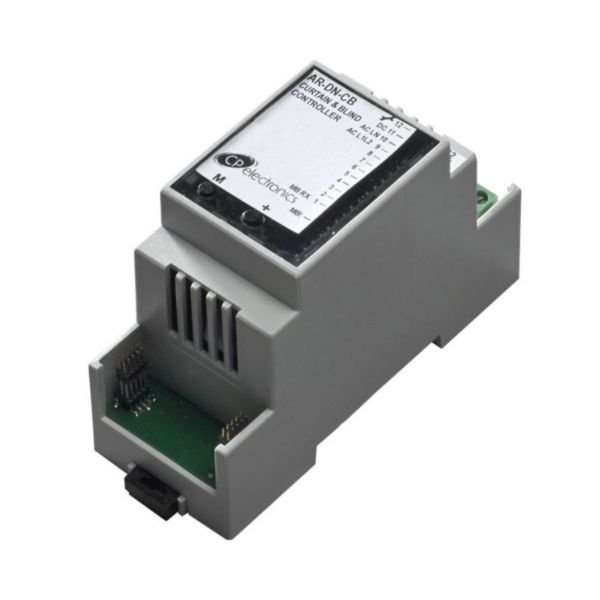

DIN Rail Curtain and Blind Controller | 120W Max Power | LED Indication | @Each of 1 | by CP Electronics
The DIN Rail Curtain and Blind Controller is designed to control curtain and blind motors with ease, featuring a maximum switching power of 120W and LED indication for operational status. Ideal for both commercial and residential applications, this controller integrates seamlessly with An-10 systems, providing automated shading solutions while optimizing natural light usage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIN Rail Curtain and Blind Controller | 120W Max Power | LED Indication | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: AR-DN-CB
Alternatively Known As: DIN Rail Blind Controller, Curtain Motor Controller, An-10 Blind Controller, AR-DN-CB Curtain Controller
Technical Specifications
- Max switching power: 120 W
- Rated current: 10 A
- Rated operating voltage: 12-12 V DC
- Number of switching contacts: 2
- Mounting method: DIN rail adaptor
- Width: 35 mm (2 modular spacings)
- Height: 90 mm
- Depth: 58 mm
- Operating temperature: -10 to 40 °C
- Connection type: Screwed terminal, cable capacity 2.5 mm²
- LED indication: Yes
- Type of load: Inductive load
- Halogen free: Yes
- Dimensions (H x L x W): 90mm x 58mm x 35mm
- Weight: 0.2 kg
Key Features
- Controls curtain and blind motors with change in motor direction
- Compatible with An-10 DINrail Master Controller and slave devices
- Provides switching for up to 2 contacts with a max switching power of 120W
- LED indication for operational status
- Mounts on DIN rail with 2 modular spacings
- Halogen free construction
- Screwed terminal connection supporting 2.5 mm² cables
- Operating temperature range from -10 to 40 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with DIN rail mounted control devices and compliant with local electrical standards.
Applications
- Control of curtain and blind motors in commercial and residential buildings
- Integration with An-10 wireless lighting control systems
- Suitable for automated shading and window treatment systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables automated control of blinds and curtains to optimize natural light usage, reducing energy consumption for heating and cooling
- Halogen free materials reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to CP Electronics for specific warranty terms.
Available Now
The CP Electronics DIN Rail Curtain and Blind Controller AR-DN-CB is available for immediate purchase, ideal for integration in commercial and residential automated shading systems.
