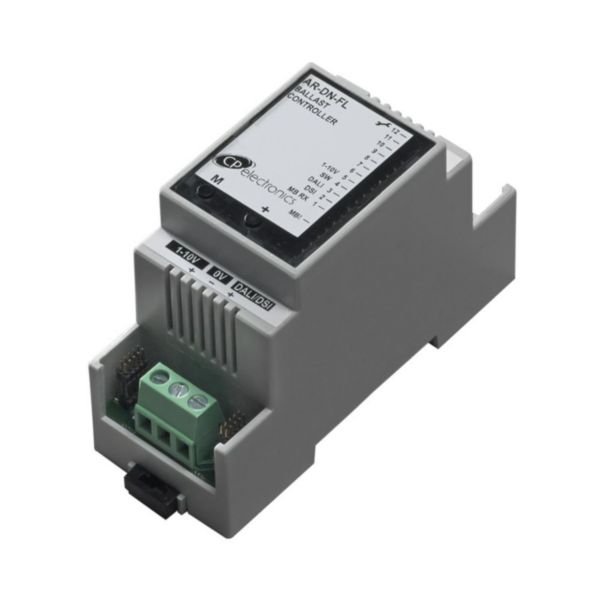

DIN Rail Driver/Ballast Controller | 10A Relay | Dimmable Control Output | Wireless Communication | @EA of 1 | by CP Electronics
The DIN Rail Driver/Ballast Controller is designed for efficient lighting control, featuring a 10A relay and dimmable control output for DALI and 1-10V ballasts. Ideal for commercial and industrial applications, it integrates seamlessly into An-10 wireless lighting control networks, ensuring energy-efficient operation and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIN Rail Driver/Ballast Controller | 10A Relay | Dimmable Control Output | Wireless Communication | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: AR-DN-FL
Alternatively Known As: DIN Rail Ballast Controller, AR-DN-FL Ballast Controller, CP Electronics Lighting Controller, An-10 Ballast Controller
Technical Specifications
- Max control current: 10,000 mA
- Voltage: 220-240 V
- Frequency: 50 Hz
- Number of outputs: 1
- Type of load: Universal and LED Retrofit
- Mounting method: DIN-rail adaptor
- Width: 35 mm
- Height: 90 mm
- Depth: 58 mm
- Operating temperature: -10 to 40 °C
- Storage temperature: -10 to 40 °C
- Degree of protection: Other
- Degree of impact strength (IK): Other
- Connection type: Screwed terminal
- Cable section: 2.5 mm²
- With LED indication: Yes
- Mandatory neutral: Yes
- Halogen free: Yes
- Parallel-service possible: Yes
- Dimensions (H x L x W): 90mm x 58mm x 35mm
- Weight: 0.2 kg
Key Features
- Controls up to 12 slave output load controllers including dimmers and ballast controllers
- 10A relay for switching loads
- Dimmable control output for DALI, DSI digital ballasts and 1-10V analogue ballasts
- Radio transceiver for two-way communication within An-10 systems
- CAN port for wired communication with other master controllers
- Configurable via UNLCDHS programming handset or ALC commissioning software
- Over current and thermal protection on dimmers
- Screwed terminal connection with 2.5 mm² cable section
- Halogen free and white color housing
- Mandatory neutral required
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with DIN rail mounted lighting control systems to ensure compliance with electrical standards and safety.
Applications
- Wireless lighting control systems
- Control of dimmers and fluorescent ballast lighting
- Integration in An-10 wireless lighting control networks
- Commercial and industrial lighting automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy-efficient lighting control through dimming and automation
- Supports LED retrofit loads reducing energy consumption
- Halogen free materials reduce environmental impact
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics DIN Rail Driver/Ballast Controller AR-DN-FL is available for immediate purchase, ideal for commercial and industrial wireless lighting control applications.
