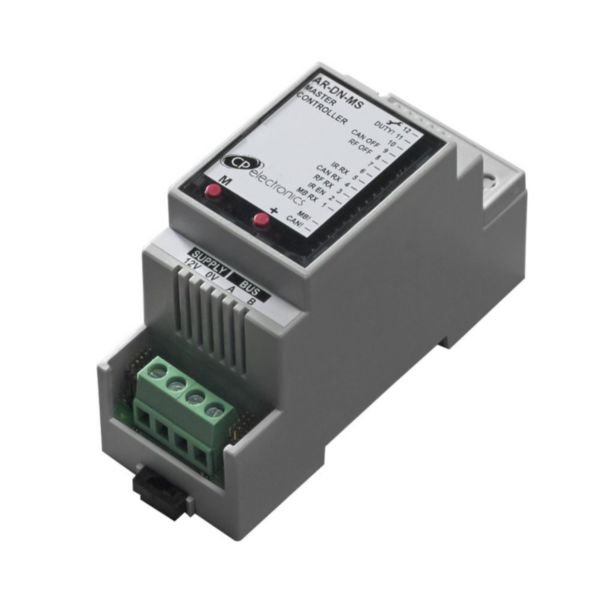

DIN Rail Master Controller | Controls 12 Slave Outputs | Radio & Wired Communication | by CP Electronics
The DIN Rail Master Controller from CP Electronics is designed to control up to 12 slave output load controllers, making it ideal for commercial and industrial lighting control systems. With both radio transceiver and CAN wired communication capabilities, it ensures reliable operation in various environments. Perfect for integrating with An-10 wireless lighting networks, this controller enhances energy efficiency through dimming and scheduling features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIN Rail Master Controller | Controls 12 Slave Outputs | Radio & Wired Communication | by CP Electronics
Brand: CP Electronics
SKU: AR-DN-MS
Alternatively Known As: An-10 Master Controller, DIN Rail Lighting Controller, Wireless Lighting Master Controller
Technical Specifications
- Controls up to 12 slave output load controllers
- Communication: Radio transceiver and CAN wired port
- Compatible slave devices: AR-DN-D series dimmers, AR-DN-FL ballast controller, AR-DN-CB curtain and blind controller
- Programming via UNLCDHS handset or ALC software with RF PC dongle
- Supports multiple master controllers communication via radio or wired connection
- Dimensions (H x L x W): 90mm x 60mm x 100mm
- Weight: 0.5 kg
Key Features
- Controls up to 12 Slave Output load controllers including dimmers and ballast controllers
- Supports both radio and wired communication via CAN port
- Configurable using UNLCDHS programming handset or ALC commissioning software
- Provides hard-wired connection to improve communication in RF-challenged environments
- Includes a radio transceiver for two-way communication within An-10 systems
Professional Installation Requirements
- Installation and configuration should be performed by a qualified electrician or lighting control professional to ensure compliance with electrical standards and optimal system performance.
Applications
- Commercial and industrial lighting control systems
- Integration with An-10 wireless lighting control networks
- Control of dimmers, fluorescent ballast lighting, curtains, and blinds
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables energy-efficient lighting control through dimming and scheduling
- Supports integration with energy-saving lighting technologies
- Reduces energy consumption by optimizing lighting usage
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The CP Electronics DIN Rail Master Controller is available for immediate purchase, ideal for commercial and industrial wireless lighting control applications.
