DIN Rail Multi-channel Power Supply | 100-240V AC Input | 24V DC Output | Compact Design by Matchmaster
DIN rail multi-channel power supply with 100-240V AC input and 24V DC output—ideal for industrial automation and building management systems. Built for efficiency, with compact design and short-circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

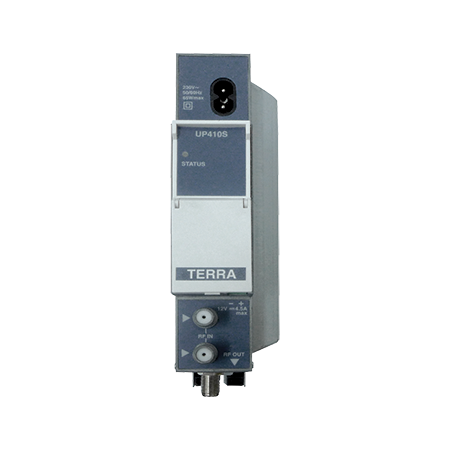

Product Name/Title: DIN Rail Multi-channel Power Supply
Brand: Matchmaster
SKU: 14MM-UP410S
Alternatively Known As: Modular Power Supply, RF Combiner Power Supply, DIN Rail Power Supply
Technical Specifications
- Supply voltage limit values: 187-250 V~ 50/60 Hz.
- Output voltage: 12 V ± 0.5 V.
- Power consumption: 65 W max.
- Output current: 0-4.5 A short circuit protected.
- Ripple: < 10 mVpp at 100 Hz.
- Noise: < 50 mVpp.
- Frequency range of RF combiner: 47 MHz - 2.4 GHz.
- Insertion loss: ≤ 4.5 dB (47 MHz - 2.4 GHz).
- Isolation: ≥ 20 dB (47-1500 MHz).
- Temperature range: -20 - 50°C.
- Dimensions (H x L x W): 36mm x 198mm x 107.5mm
- Weight: 1 kg
Key Features
- 12V 4.5 Amp AT series headend modular power supply.
- Integrated RF combiner with switch mode technology.
- Short circuit and overload protection.
- DIN rail or wall mounting options.
- Robust die-cast housing.
- Screw terminal block for DC output power distribution.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Broadcasting: Suitable for various types of broadcast systems including DVB-T, DVB-C, DVB-S/S2, IP, ASI, SDI, and FM.
- Headend Equipment: Ideal for use in headend setups requiring reliable power supply.
Environmental Benefits
- Efficient power management reduces energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The DIN Rail Multi-channel Power Supply by Matchmaster is available now for immediate purchase. Ideal for broadcasting and headend equipment applications.
