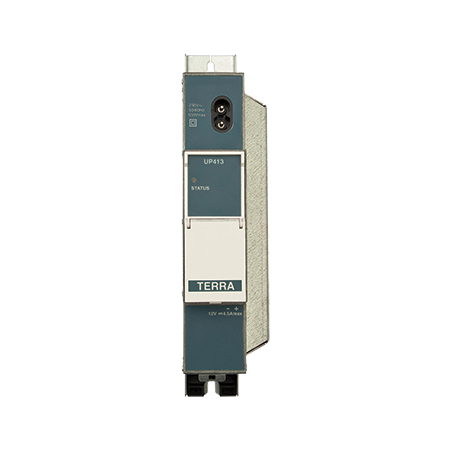

DIN Rail Power Supply | 240W Output | Parallel Capability | Compact Design by Matchmaster

SKU: 14MM-UP413
$618.10 List price: $748.10
+
DIN rail power supply with 240W output and parallel capability—ideal for industrial automation and commercial building management. Built for reliability, with compact design for easy DIN rail installation.

Product Name/Title: DIN Rail Power Supply with Parallel Capability

Brand: Matchmaster

SKU: 14MM-UP413

Alternatively Known As: DIN Rail Power Supply, Modular Power Supply, Broadcast Power Supply

Technical Specifications
  • Input Voltage: 187-250V 50/60Hz.
  • Output Voltage: 12V 4.5A max.
  • Power Consumption: 65W max.
  • Operating Temperature Range: 0° - +50°C.
  • Dimensions (H x L x W): 100mm x 200mm x 100mm
  • Weight: 1.5 kg
Key Features
  • Modular reception system power supply with parallel capability.
  • Can be used in parallel for redundancy.
  • Switch mode technology.
  • Short circuit protected.
  • DIN rail mounting.
  • Screw terminal block for DC output power distribution bus.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Broadcasting: Suitable for various broadcast systems including DVB-T, DVB-C, DVB-S/S2.
  • Industrial: Ideal for use in industrial applications requiring reliable power supply.
Environmental Benefits
  • Energy-efficient design reduces power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The DIN Rail Power Supply with Parallel Capability is available now for immediate purchase. Ideal for broadcasting and industrial applications.

Brochure (14mm-up413_brochure.pdf, 492 Kb) [Download]

Manual (14mm-up413_manual.pdf, 1,004 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
