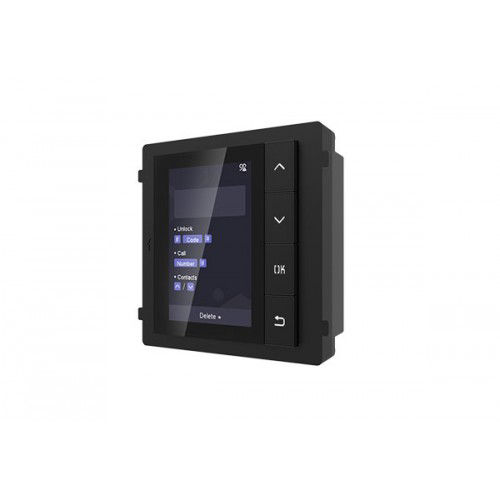

Display Module to Suit Intercom Hikvision
Hikvision intercom display module for modular door stations. Ideal for video intercom installs at building entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-KD-DIS, KD8 Series Display Module, Intercom Name Scroll Module, Modular Video Intercom LCD Module
Technical Specifications
- Display: 3.5-inch TFT LCD
- Display Resolution: 320 × 480 pixels
- Controls: Four physical backlit buttons
- Contact Capacity: Up to 500 contacts
- Functions: Contact list display, number dialling and PIN-assisted door unlocking with compatible keypad module
- Languages: Multiple languages supported
- Protection Rating: IP65
- Communication Interface: RS-485
- Power: Supplied through the compatible modular door station system
- Power Consumption: Up to 3 W
- Installation: Flush or surface mounting with compatible bracket purchased separately
- Compatibility: Hikvision modular KD8 Series door stations and compatible main modules
- Dimensions (H x L x W): 98.5mm x 100mm x 34.2mm
- Weight: 0.35 kg
Key Features
- Designed for Hikvision modular door station installations
- Displays resident or apartment contact lists
- Four physical backlit navigation buttons
- Supports multiple languages
- IP65-rated enclosure for protected outdoor entry environments
- Compatible with flush-mount and surface-mount modular brackets
- Requires a compatible Hikvision main door station module
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. The module must be integrated with a compatible Hikvision modular door station and installed using the appropriate mounting bracket and low-voltage wiring practices.
Applications
- Apartment and multi-residential building entrances
- Commercial building access control points
- Gated community and facility entry systems
- Video intercom installations requiring resident contact-list display
- Hikvision KD8 Series modular door station upgrades
Standards & Compliance
- AS/NZS CISPR 32:2015 EMC emissions requirements are applicable to this type of multimedia and communications equipment; verify the RCM and supplied Australian compliance documentation for the specific unit.
Environmental Benefits
- Low power consumption helps reduce operating energy use
- IP65 protection can support longer service life in suitable outdoor entry environments
- Electronic components subject to RoHS-style restricted-substance requirements reduce the use of certain hazardous materials
- Modular construction allows the display module to be replaced separately rather than replacing the complete door station
Warranty Information
Warranty is provided through the authorised Hikvision Australian distribution channel. Published Australian reseller terms for this model vary between two and three years, so confirm the applicable warranty period with the supplying distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
