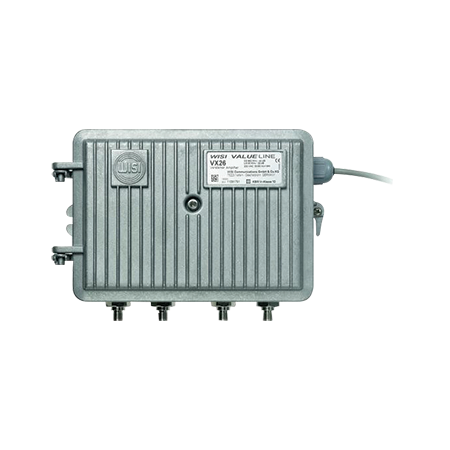

Product Name/Title: 85-1006MHz 41dB Gain Distribution Amplifier with 5-65MHz Return Path
Brand: Matchmaster
SKU: 14MM-VX26H
Alternatively Known As: Distribution Amplifier with Return Path, Outdoor Distribution Amplifier, High Gain Distribution Amplifier, IP66 Rated Distribution Amplifier
Technical Specifications
- Downstream frequency range: 85-1006 MHz
- Downstream gain: 41 dB
- Upstream frequency range: 5-65 MHz
- Upstream gain: 24 dB
- Noise figure downstream: <6 dB up to 600 MHz; <9 dB up to 1000 MHz
- Noise figure upstream: <6 dB
- Attenuator downstream: 0-15 dB in 1 dB steps
- Equalizer downstream: 0-22.5 dB in 1.5 dB steps
- Interstage attenuator downstream: 0/5 dB (Jumper)
- Interstage equalizer downstream: 0/3/6/9 dB (Jumper)
- Output level 1: 111 dBµV (CENELEC 42 channels, flat, CSO/CTB >65 dB/>60 dB)
- Output level 2: 114 dBµV (CENELEC 42 channels, 6dB slope, CSO/CTB 65/60 dB)
- Output test point: -20 dB (directional coupler)
- Attenuator upstream input: 0-15 dB in 1 dB steps
- Attenuator upstream output: 0-15 dB in 1 dB steps + 5 dB Interstage Jumper
- Equalizer upstream: 0/3/6/9 dB (Jumper)
- Output level upstream: 112 dBµV (1 TS 140)
- Output test jack upstream: -20 dB
- Connectors: 3 x F-female
- Operating voltage AC: 180-265 V (50/60 Hz)
- Power consumption: 18 W
- Screening factor: Class A, EN 50083-2
- Operating temperature range: -20 to +55 °C
- Protection class: IP66
- Lightning protection: 4 kV (EN61000-4-5, 1,2/50 µs pulse)
- Dimensions (H x L x W): 158mm x 85mm x 231mm
- Weight: 1.5 kg
Key Features
- 41dB gain for downstream frequency range 85-1006MHz
- Integrated 5-65MHz return path channel with 24dB gain
- IP66 rated for water and dust protection, suitable for harsh environments
- Lightning protection with 4 kV HF-connections
- Foxtel approved (F30783)
- All settings adjustable via exact switching step (Q-step) or jumper
- Integrated diplex filter
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and harsh environment installations such as pedestals and outdoor enclosures
- Cable TV and satellite distribution systems requiring high gain and return path functionality
- Residential and commercial distribution networks needing robust signal amplification
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP66 rated housing reduces need for frequent replacements, minimizing waste
- Energy efficient design with low power consumption of 18W
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster VX26H Distribution Amplifier is available now for immediate purchase. Ideal for outdoor and harsh environment signal distribution applications.
