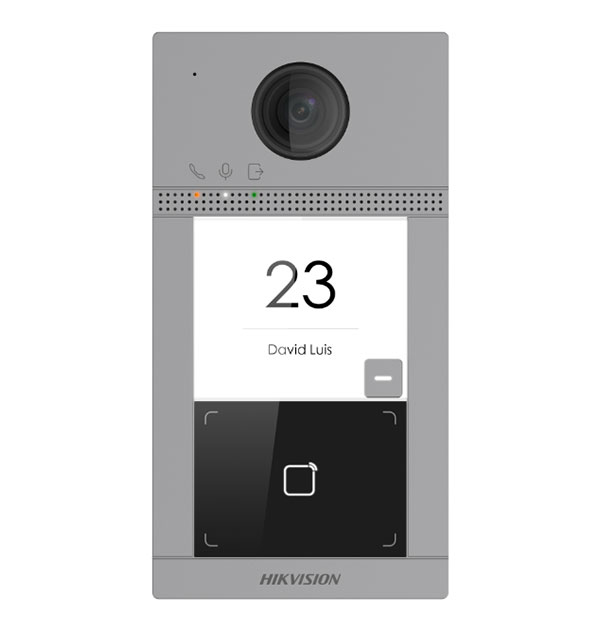

Door Station 1 Button Surface Hikvision
Hikvision door station features 1 button and surface mounting. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 1-Button Video Intercom Door Station, Villa Door Station, Surface-Mount Intercom Door Station
Technical Specifications
- Model: DS-KV6113-WPE1(C)
- Button: 1 physical call button
- Camera: 2MP HD camera with IR supplement
- Field of View: Horizontal 129°, vertical 75°
- Network: 10/100 Mbps self-adaptive Ethernet
- Power Supply: IEEE 802.3af standard PoE or 12VDC
- Power Consumption: Less than 10 W
- Access Control: Integrated MIFARE card reader
- Lock Control: 1 relay, maximum 30 VDC, 2 A
- Audio: Two-way audio with noise suppression and echo cancellation
- Protection Rating: IP65
- Operating Temperature: -40°C to 55°C
- Installation: Surface mounting
- Dimensions (H x L x W): 138mm x 65mm x 27mm
- Weight: 0.19 kg
Key Features
- Single-button operation for villa and single-residence entry systems
- 2MP camera with infrared supplementary lighting
- Supports standard PoE or 12VDC power supply
- Integrated MIFARE card-reading area
- Built-in microphone and loudspeaker for two-way communication
- Outdoor-rated IP65 housing
- Web configuration and 10/100 Mbps Ethernet connectivity
Professional Installation Requirements
- Installation should be performed by a qualified security or intercom technician. Configure PoE or 12VDC power, network connections and any electric-lock wiring in accordance with the manufacturer's instructions and applicable local electrical requirements.
Applications
- Residential villa and single-home video intercom systems
- Apartment or townhouse entry systems
- Outdoor pedestrian gates and entrance doors
- IP-based access control installations
- Replacement or upgrade of compatible Hikvision intercom door stations
Standards & Compliance
- AS/NZS 62368.1:2026 is the applicable safety standard category for audio, video and information and communications technology equipment; product-specific compliance certification should be confirmed before installation.
Environmental Benefits
- Low power consumption of less than 10 W can help reduce operating energy use.
- PoE connectivity can reduce separate power cabling and simplify installation material requirements.
- Durable IP65 outdoor protection can extend service life and reduce replacement waste.
- Aluminium-alloy electronic equipment housings are generally recyclable through appropriate e-waste recycling channels.
Warranty Information
Hikvision warranty coverage varies under the Hikvision Australia and New Zealand RMA policy. Purchase through an authorised Australian distributor and retain proof of purchase; confirm the applicable period with the supplying distributor.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
