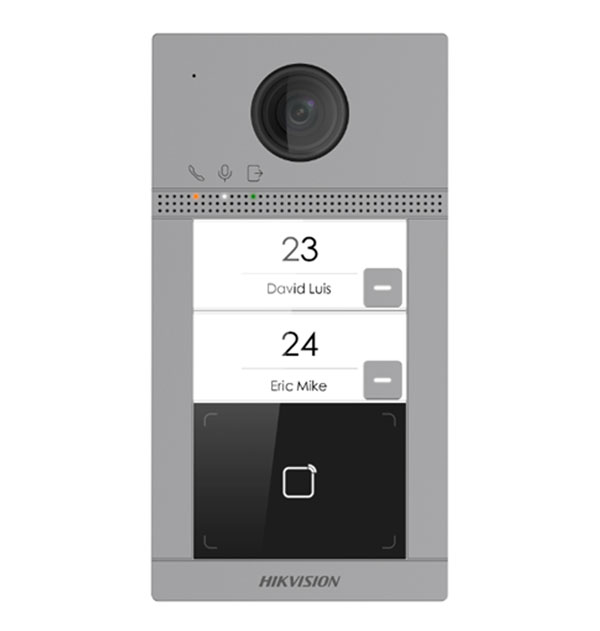

Door Station 2 Button Surface Mount Hikvision
Hikvision door station features 2 call buttons and surface mounting. Ideal for video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2-Button IP Video Door Station, Hikvision Surface-Mount Door Station, Hikvision Two-Call Villa Door Station
Technical Specifications
- Model: DS-KV8213-WME1(B)
- Call Buttons: 2 physical buttons with illuminated name tags
- Camera: 2MP HD colour camera
- Video Resolution: Up to 1920 × 1080p
- Field of View: 129° horizontal, 75° vertical
- Night Vision: IR supplement up to 3 m
- Audio: Two-way communication with noise suppression and echo cancellation
- Access Control: 13.56 MHz MIFARE card reader
- Relay Outputs: 2, maximum 30 VDC 2 A
- Network Interface: 10/100 Mbps Ethernet
- Wireless: 2.4 GHz Wi-Fi
- Power Supply: 12 VDC or IEEE 802.3af PoE
- Power Consumption: Less than 10 W
- Ingress and Impact Protection: IP65 and IK08
- Operating Temperature: -40°C to 53°C
- Housing: Aluminium alloy
- Dimensions (H x L x W): 174mm x 29mm x 91mm
- Weight: 0.37 kg
Key Features
- Two independent call buttons for separate residences, offices or indoor stations
- 2MP camera with wide-angle view and low-light IR illumination
- Built-in MIFARE card reader for access control
- Two-way video intercom with integrated microphone and speaker
- Two relay outputs for controlling compatible locks
- Supports 12 VDC or standard PoE power
- Surface-mount installation for outdoor entry points
- IP65 weather protection and IK08 impact resistance
- Compatible with Hikvision IP video intercom systems and Hik-Connect
Professional Installation Requirements
- Installation and configuration should be performed by a suitably qualified security or communications technician. Network, PoE or 12 VDC power, door-lock wiring and access-control commissioning must follow the manufacturer’s instructions and applicable Australian electrical and communications requirements.
Applications
- Duplexes and dual-occupancy residences
- Villa and residential gate entrances
- Small apartment and multi-tenant buildings
- Office and commercial entry points
- IP video intercom and access-control upgrades
Environmental Benefits
- Aluminium alloy housing is recyclable at end of service life
- IP65 and IK08 protection can help extend product service life and reduce replacement waste
- PoE power delivery can simplify cabling and reduce the need for a separate local power supply
- Supports remote video intercom and access control, potentially reducing unnecessary site visits
Warranty Information
Hikvision products are generally covered by a standard three-year manufacturer warranty, subject to the applicable Australian distributor terms, authorised supply channel and warranty exclusions. Confirm the specific warranty period at purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and communications distributors.
