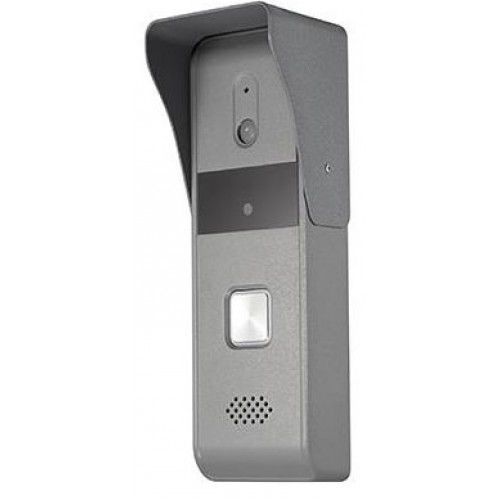

Door Station 4 Wire Hikvision
Hikvision 4 wire door station features 4 wire connection. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4-Wire Door Station, Analogue Video Door Station, Villa Door Station
Technical Specifications
- Model: DS-KB2411T-IM
- Connection: 1 four-wire interface for video, audio, power and grounding
- Camera: 1/2.7-inch CMOS
- Resolution: 1920 x 1080 at 25 fps
- Field of View: Horizontal 66.2°, vertical 37.2°
- Supplement Light: Self-adaptive IR illumination up to 3 m
- Audio: Built-in omnidirectional microphone and loudspeaker
- Lock Control: 1 relay output, maximum 30 V DC, 1 A
- Power Supply: 12 V DC, 1 A
- Power Consumption: Maximum 5 W
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10% to 90%, non-condensing
- Material: Aluminium alloy
- Video Compression: H.264
- Dimensions (H x L x W): 135.14mm x 41.93mm x 49.6mm
- Weight: 0.35 kg
Key Features
- Four-wire analogue video intercom connection
- 1920 x 1080 pinhole camera with 25 fps video
- Self-adaptive infrared illumination for low-light viewing
- Hands-free two-way audio communication
- One-touch visitor calling
- Relay output for electric lock control
- Supports up to two door stations in the intercom system
- Slim aluminium-alloy housing for residential and light-commercial entry installations
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications installer. Connect the 12 V DC supply, four-wire intercom cabling and door-lock relay in accordance with the Hikvision installation instructions and applicable Australian electrical and communications requirements.
Applications
- Residential villa and townhouse intercom systems
- Apartment and small multi-dwelling entry systems
- Light-commercial office entrances
- Replacement or upgrade of compatible four-wire analogue intercom door stations
- Entry points requiring remote electric-lock release
Standards & Compliance
- AS/NZS 62368.1 for applicable audio, video and information and communications technology equipment safety requirements
- Australian installations should use appropriately approved equipment and comply with applicable RCM and electrical installation requirements
Environmental Benefits
- Low maximum power consumption of 5 W during operation
- Aluminium-alloy housing is durable and recyclable at end of service life
- Four-wire compatibility can support reuse of existing intercom cabling, reducing rewiring material and installation waste
- Replaceable system component that can extend the service life of an existing intercom installation
Warranty Information
Hikvision warranty support is generally provided through authorised distribution channels in Australia. The DS-KB2411T-IM was not identified in Hikvision Australia's published five-year premium project-product warranty list; confirm the applicable product warranty with the authorised distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
