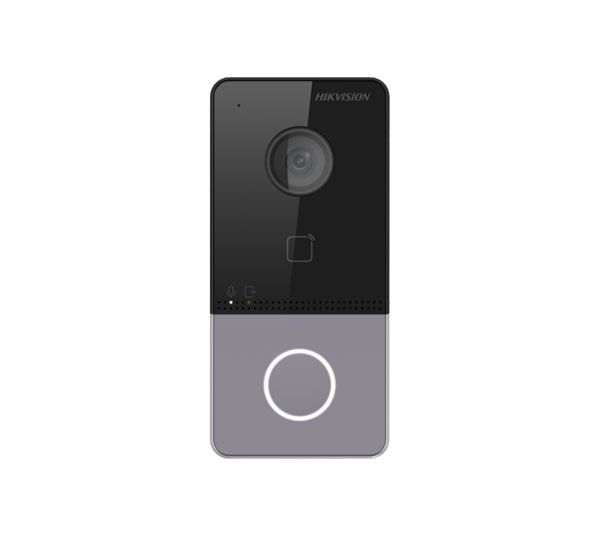

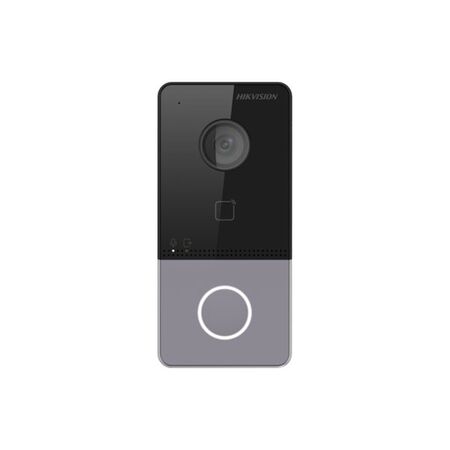

Door Station Value Series Variant C Hikvision
Hikvision Value Series door station features the Value Series intercom range in variant C. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Value Series Door Station, 6 Series Villa Door Station, IP Video Intercom Door Station, Single-Button Villa Door Station
Technical Specifications
- Camera: 2 MP HD camera
- Video Resolution: Main stream 1920 × 1080; sub stream 640 × 480
- Field of View: 131° horizontal, 78° vertical
- Wide Dynamic Range: 120 dB WDR
- Supplement Light: IR illumination up to 3 m
- Video Compression: H.264, H.265 and MJPEG
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Features: Noise suppression and echo cancellation
- Card Capacity: Up to 10,000 cards
- User Capacity: Up to 2,000 users
- Network Interface: 1 × RJ-45, 10/100 Mbps Ethernet
- Network Protocols: TCP/IP, RTSP, IPv6 and ONVIF
- Power Supply: Standard PoE or 12 VDC
- Power Consumption: Less than 10 W
- Access Control: 1 relay, maximum 30 VDC 2 A
- Inputs: 4 alarm inputs, 1 door contact input and 1 exit button input
- Installation: Surface mounting
- Ingress Protection: IP65
- Operating Temperature: -40 °C to 55 °C
- Operating Humidity: 10% to 95%, non-condensing
- Operating System: Embedded Linux
- Certifications and Markings: RCM, C-Tick, CE, FCC, UL, CB, RoHS, REACH and WEEE
- Dimensions (H x L x W): 65mm x 138mm x 27mm
- Weight: 0.19 kg
Key Features
- One-touch call button for villa or detached-house intercom applications
- 2 MP camera with 120 dB WDR and infrared illumination
- Built-in card reader for access control
- Standard PoE for combined network and power connection
- Two-way audio with noise suppression and echo cancellation
- Remote configuration and mobile control through Hik-Connect
- ONVIF support for integration with compatible systems
- Outdoor-rated IP65 housing
- Relay output for electric lock control
- Tamper input and door contact monitoring
Professional Installation Requirements
- Installation should be completed by a qualified security or access-control installer. Configure the PoE network, access-control relay, door contact and electric lock in accordance with the manufacturer's instructions and applicable Australian electrical and communications requirements.
Applications
- Residential villa entrances
- Detached homes
- Small residential developments
- Gated pedestrian entrances
- Small commercial premises requiring video intercom and card access
- Outdoor visitor identification and remote door release
Standards & Compliance
- AS/NZS CISPR 32:2015 EMC requirements for multimedia equipment, associated with the product's RCM compliance
Environmental Benefits
- Standard PoE combines power and data over a single network cable, reducing additional power cabling and installation materials
- IP65 outdoor protection can help extend service life and reduce replacement waste in exposed installations
- RoHS and REACH-related product markings support reduced use of restricted substances
Warranty Information
Hikvision warranty support is subject to the applicable Australian distributor terms and proof of purchase. Australian security distributors commonly list a 3-year warranty for Hikvision intercom products; confirm the product-specific coverage before purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and access-control distributors.
