Trade Discount 25%

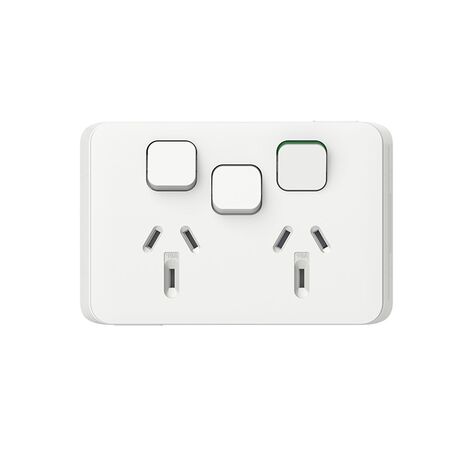

Double Power Point 10A Iconic Extra Switch White Clipsal
Clipsal Double Power Point features 10A, white, extra switch, horizontal. Ideal for indoor residential and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Voltage: 250V AC, 50Hz
- Rated Current: 10A
- Material: Polycarbonate (PC) for skin
- Outlet Poles Configuration: 1P + E with shutter
- Device Mounting: Flush
- Fixing Mode: By screws, horizontal
- Electrical Durability: 12,000 cycles
- Connections: 3 x screw terminals
- Clamping Connection Capacity: 2.5 mm² (rigid)
- Wire Stripping Length: 16 mm
- Ambient Operating Temperature: 0 to 45°C
- Relative Humidity: 10% to 95%
- Embedding Depth: 24 mm
- Dimensions (H x L x W): 120mm x 32mm x 78mm
- Weight: 0.1 kg
Key Features
- Twin switch socket outlet with removable extra switch aperture
- Horizontal mount design
- Flush device mounting with grid plate and skin
- Matt surface finish
- Shuttered 1P + E outlet with earthing contact
- Rated current 10A, 250V AC, 50Hz
- Electrical durability of 12,000 cycles
- 3 x screw terminals with Philips No 2 screw head
- Supports up to 4 cables with 2.5 mm² clamping connection capacity
- Wire stripping length 16 mm
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Indoor electrical power outlet applications
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable polycarbonate construction reduces replacement frequency
- Designed for long electrical durability minimizing waste
- Supports energy-efficient electrical connections
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal Iconic warranty terms for details.
Available Now
The Clipsal Iconic Twin Switch Socket Outlet 250V 10A with Horizontal Mount and Removable Aperture is available now for immediate purchase. Ideal for residential and commercial indoor electrical power outlet applications.
