Trade Discount 24%

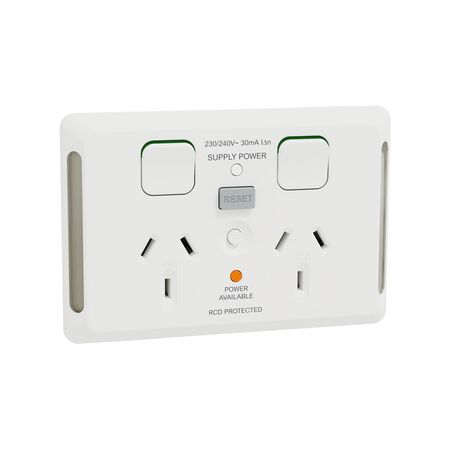

Double Specialty Outlet 2P 10A Circuit ID 30mA White Clipsal

BRAND: Clipsal
SKU: P3025RCD30V2-XW
$200.90 List price: $262.70
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Double Specialty Outlet features 2-pole, 10A rating, 30mA sensitivity, and IP20 rating. Ideal for residential and commercial power outlets.

Alternatively Known As: Clipsal RCD Double Power Point, Clipsal Pro Series RCD Socket, Double Switched Socket with RCD, RCD Protected Power Outlet, Clipsal P3025RCD30V2-XW, Safety Power Point with RCD

Technical Specifications
  • Rated operational voltage: 230-240V AC, 50Hz
  • RCD Type: Type II, Type A, 30mA trip current
  • Socket outlets: Double, 10A rated, 2P+E with shutter
  • RCD rated current: 20A
  • LED indicators: Amber (RCD strip status), White (power supplied)
  • IP rating: IP20 (dust resistance)
  • IK rating: IK08 (impact protection)
  • Material: Polycarbonate, Polypropylene, Polyoxymethylene, ABS
  • Mounting: Horizontal wall-mount
  • Terminals: 3 screw terminals, accepts 1 x 2.5...4 x 2.5 mm² or 3 x 4 mm² cables
  • Wire stripping length: 16mm
  • Ambient operating temperature: 0–45°C
  • Relative humidity: 10–95%
  • Complies with AS/NZS 3100, AS/NZS 3190
  • RCM certified
  • Dimensions (H x L x W): 78mm x 44mm x 116mm
  • Weight: 0.18 kg
Key Features
  • Integrated 30mA RCD for enhanced electrical safety
  • Double switched socket outlets for versatile power access
  • Antibacterial material on user touchpoints
  • Amber and white LED indicators for clear RCD and power status
  • Windows for permanent circuit identification
  • Horizontal wall-mount design
  • Impact-resistant (IK08) and dust-resistant (IP20)
  • Screw terminal connections for secure wiring
  • Suitable for commercial and industrial environments
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with Australian standards and optimal safety.
Applications
  • Commercial buildings
  • Industrial facilities
  • Public spaces
  • Healthcare environments
  • Educational institutions
  • Any indoor area requiring RCD-protected power outlets
Standards & Compliance
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
  • AS/NZS 3100 – Approval and test specification – General requirements for electrical equipment
  • AS/NZS 3190 – Approval and test specification – Residual current devices (current-operated earth-leakage devices)
Environmental Benefits
  • Antibacterial surfaces help maintain hygiene in shared spaces
  • Durable construction reduces replacement frequency and waste
  • Energy-efficient LED indicators minimize power consumption
Warranty Information

18-month manufacturer warranty against defects.

Available Now

Available for immediate purchase. Ideal for commercial, industrial, and public indoor environments requiring reliable RCD-protected power outlets.
