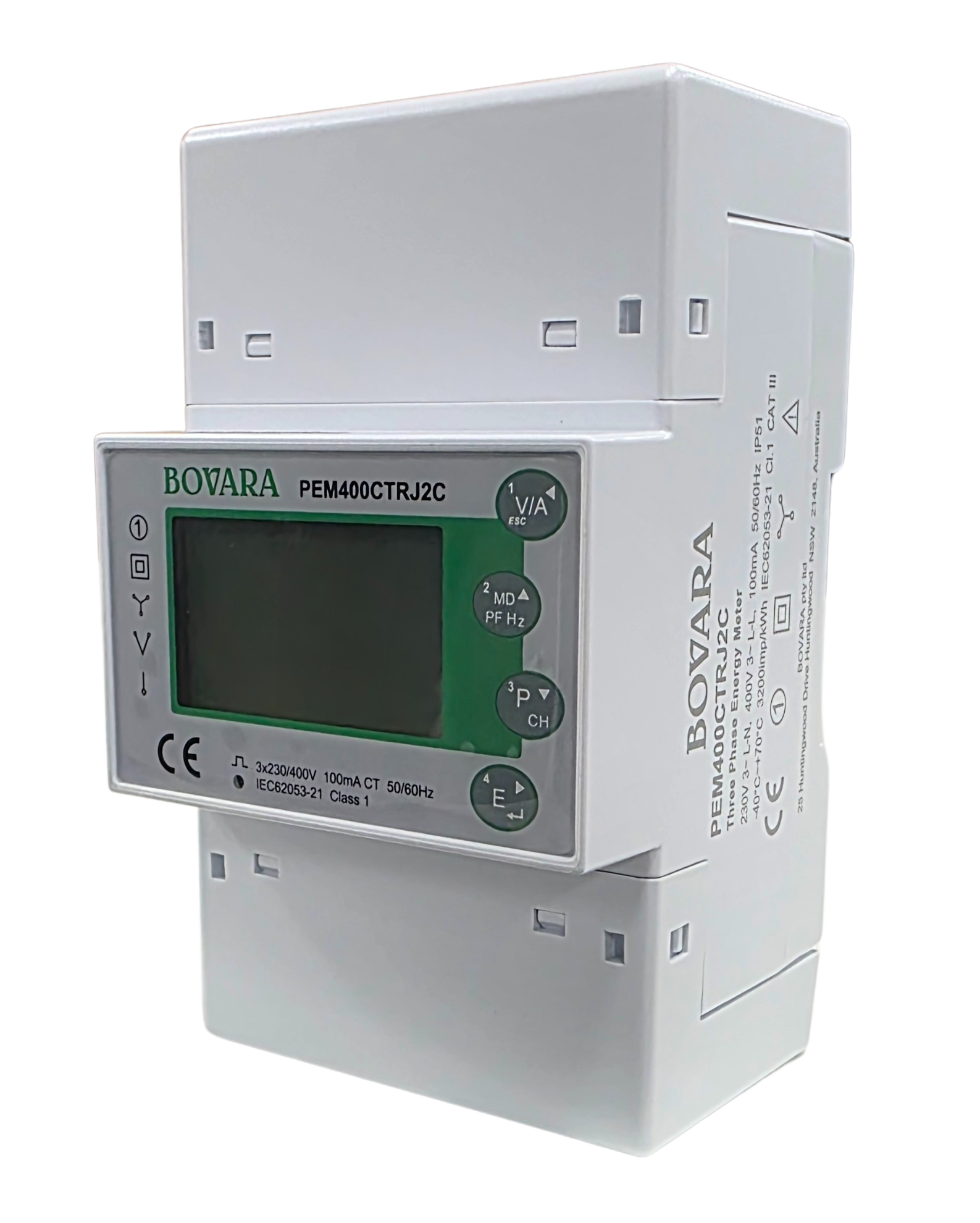

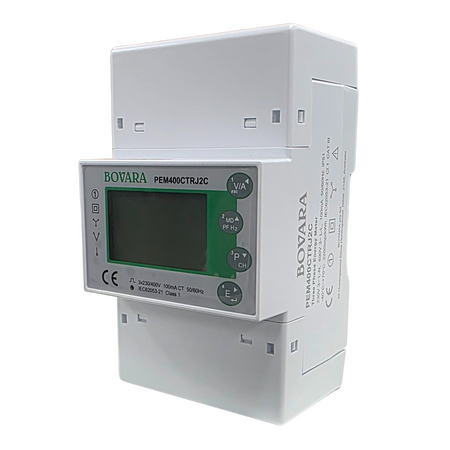

Dual Load Smart Energy Meter 400A CT RS485 Modbus DIN Rail Bovara

BRAND: Bovara Electrical Equipment
SKU: PEM400CTRJ2C
$598.10 List price: $797.50
+ −
30 Days Return Electricians Unlock Trade Access
Bovara multi-function smart energy meter features dual load metering, 400A CT connect via RJ45, RS485 Modbus output and DIN rail mount. Ideal for sub-metering.

Alternatively Known As: Bovara PEM400CTRJ2C Multifunction Energy Meter, Dual-Load Power Meter, DIN Rail Modbus Meter

Technical Specifications
  • Measurement Configuration: 2 x three-phase meters or 6 x single-phase meters
  • Nominal Voltage: 3 x 230/400 VAC
  • Voltage Measurement Range: 50–600 VAC
  • Auxiliary Supply: 85–300 VAC
  • Current Input: 100 mV external CT or 100 mA CT input
  • Primary CT Current Setting: 1–9999 A
  • Frequency: 45–65 Hz
  • Active Energy Accuracy: Class 1
  • Reactive Energy Accuracy: Class 2
  • Communication: RS485 Modbus RTU via dual RJ45 connectors
  • Baud Rate: 2400, 4800, 9600, 19200 or 38400 bps
  • Modbus Address Range: 1–247
  • Communication Distance: Up to 1000 m
  • Power Consumption: Maximum 2 W or 10 VA
  • Display: White-backlit LCD with four touch buttons
  • Ingress Protection: IP51 for indoor use
  • Installation Category: CAT III
  • Insulation Class: Class II
  • Operating Temperature: -25°C to +55°C
  • Storage Temperature: -40°C to +70°C
  • Dimensions (H x L x W): 122.5mm x 66mm x 71.7mm
  • Weight: 0.35 kg
Key Features
  • Measures two independent three-phase loads in one device
  • Can also be configured for up to six single-phase measurement channels
  • Compatible with external current transformers, including 400 A CT applications when correctly configured
  • RS485 Modbus RTU communication for remote monitoring and programming
  • Dual RJ45 connectors simplify RS485 network integration
  • Displays voltage, current, active/reactive/apparent power, energy, power factor, THD, frequency and demand
  • Records imported, exported and total active and reactive energy
  • Backlit LCD with password-protected setup screens
  • DIN-rail mounting for switchboards and control panels
Professional Installation Requirements
  • Installation and connection to switchboard wiring must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical requirements. Confirm CT ratio, polarity, secondary signal and meter configuration before energising.
Applications
  • Commercial and industrial sub-metering
  • Dual-load energy monitoring
  • Electrical switchboards and distribution boards
  • Building management systems
  • Energy management and remote monitoring systems
  • Load profiling and demand measurement
Standards & Compliance
  • AS 62053.21:2023 — static AC active-energy metering requirements for accuracy classes 0.5, 1 and 2; the meter is specified as Class 1 active energy accuracy
Environmental Benefits
  • Supports energy monitoring and load management to help identify energy waste and improve operational efficiency
  • Enables remote data collection through RS485 Modbus, reducing the need for routine manual meter readings
  • Durable DIN-rail construction can support extended service life and reduce replacement waste
Warranty Information

Warranty details should be confirmed with an authorised Bovara distributor before purchase.

Available Now

Available through authorised Bovara distributors in Australia.
