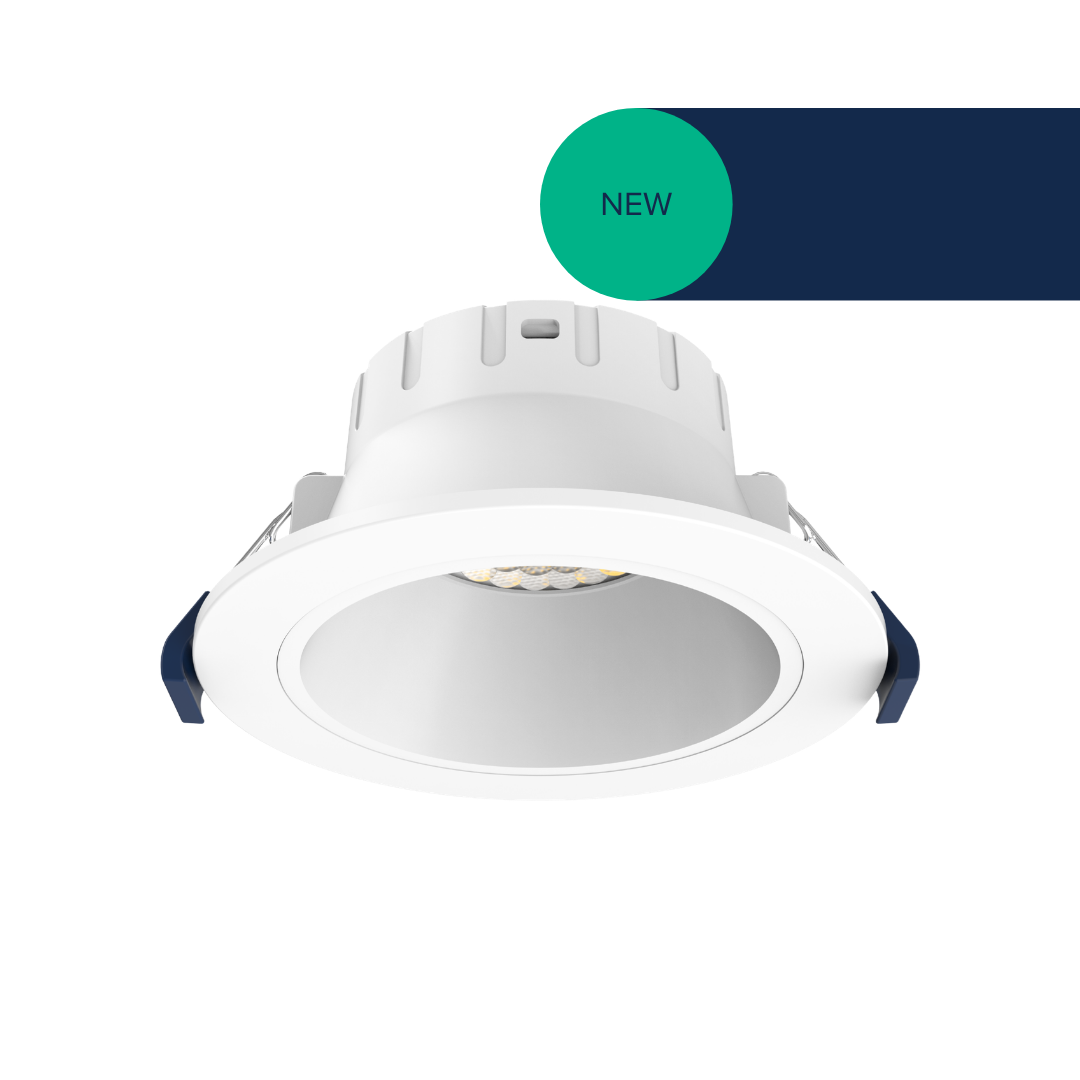

'Dular Evo 7W Integral Driver Downlight 2CCT Matt White Haneco'
'Haneco Dular Evo downlight features 7W output, 2CCT selection and integral driver in matt white. Ideal for residential ceiling lighting.'
Sign in
Please login to continue to your account.
Alternatively Known As: DULAR EVO, DULAR-EV, Haneco Dular Evo LED Downlight, 7W 2CCT Recessed Downlight
- Power: 7 W
- Lumen Output: 866 lm at 3000K; 800 lm at 4000K
- Colour Temperature: 3000K / 4000K selectable
- Efficacy: 121 lm/W at 3000K; 113 lm/W at 4000K
- Dimming: Phase-cut dimmable, trailing-edge 10–100%
- Beam Angle: 60°
- Colour Rendering Index: CRI >90
- Glare Rating: UGR <19
- Input Voltage: 220–240 Vac, 50/60 Hz
- Power Factor: >0.9
- Driver: Integral
- Electrical Classification: Class II
- Ingress Protection: IP54 front / IP20 rear
- IC Rating: IC-4
- Connection: 600 mm flex and plug
- Operating Temperature: -20°C to 40°C
- Lifespan: 50,000 hours at Ta 25°C, L80B50
- Body Material: Polyamide
- Lens Material: Polycarbonate
- Cutout Size: Ø90 mm
- Source: Haneco DULAR-EV datasheet ([haneco.com.au](https://haneco.com.au/import/downloads/DULAR-EV_DATASHEET_DULAR-EV.pdf?utm_source=openai))
- Dimensions (H x L x W): 55mm x 115mm x 115mm
- Weight: 0.2 kg
- 2CCT colour selection between 3000K warm white and 4000K neutral white
- Integral driver for streamlined installation
- High colour rendering with CRI greater than 90
- Low-glare optical performance with UGR below 19
- Flicker-free operation
- IC-4 rated for covered and abutted insulation installations when correctly installed
- IP54 protection from the front for suitable indoor applications
- Phase-cut dimmable using compatible trailing-edge dimmers
- Green Star compliant design
- Suitable for residential, hospitality and commercial interiors
- Installation must be carried out by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000, relevant Australian regulations and local requirements. Verify insulation and clearance conditions before installation. ([haneco.com.au](https://haneco.com.au/import/downloads/DULAR-EV_Dular%20Evo%20Installation%20Guide.pdf?utm_source=openai))
- Bedrooms and living areas
- Bathrooms and laundries within the product's IP rating limitations
- Dining areas, kitchens and hallways
- Hotel rooms and hospitality interiors
- Apartments and residential renovations
- Retail, display and feature lighting
- Commercial fit-outs and indoor recreation areas
- AS/NZS 60598.2.2:2016 for recessed luminaires; the Haneco installation guide states that the DULAR EVO range has been tested to this standard. ([haneco.com.au](https://haneco.com.au/import/downloads/DULAR-EV_Dular%20Evo%20Installation%20Guide.pdf?utm_source=openai))
- High efficacy of up to 121 lm/W helps reduce electricity consumption compared with less efficient lighting technologies
- 50,000-hour projected lifespan can reduce replacement frequency and associated waste
- LED technology provides efficient illumination from a 7 W load
- Green Star compliant design may support lighting efficiency objectives in applicable building projects
- Replaceable fitting rather than disposable lamp-based construction can extend service life through complete luminaire replacement
Haneco's DULAR EVO datasheet specifies a 5-year warranty. Haneco provides a direct replacement warranty for eligible products, subject to its published conditions, correct installation and proof of purchase. ([haneco.com.au](https://haneco.com.au/import/downloads/DULAR-EV_DATASHEET_DULAR-EV.pdf?utm_source=openai))
Available through Haneco and authorised Australian electrical wholesalers and distributors. ([haneco.com.au](https://haneco.com.au/contact/?utm_source=openai))
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
