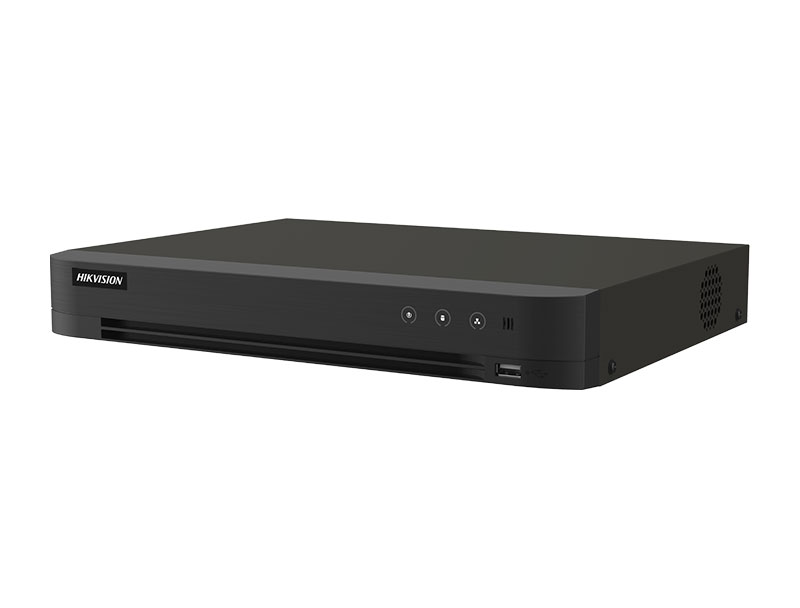

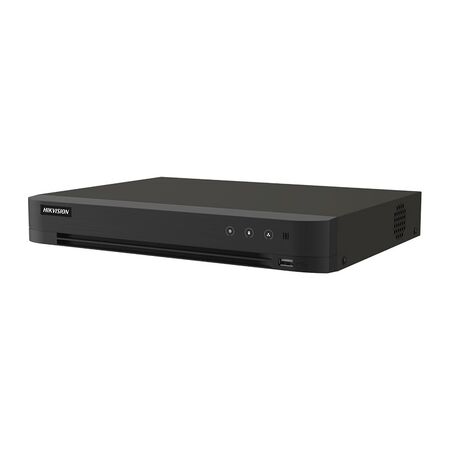

DVR 4 Channel 8MP AcuSense No HDD Hikvision
Hikvision AcuSense DVR features 4 channels, 8MP resolution and no HDD supplied. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4K Turbo HD DVR, 4-Channel AcuSense CCTV Recorder, 4-Channel Hybrid DVR
Technical Specifications
- Model: iDS-7204HUHI-M1/S
- Video Inputs: 4-channel HDTVI, AHD, HDCVI and CVBS
- IP Camera Support: Up to 8 IP cameras, up to 8MP
- Recording Resolution: Up to 8MP at 8 fps on channel 1; 5MP at 12 fps on channels 2–4
- Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264
- Storage Interface: 1 SATA interface
- Maximum Storage: Up to 10TB HDD
- HDD Inclusion: No HDD supplied
- Audio: Coaxial audio support with RCA audio input and output
- Network Interface: 1 x RJ45 10/100 Mbps Ethernet
- Video Outputs: HDMI, VGA and CVBS
- USB: 2 x USB 2.0
- Power Supply: 12V DC, 1.5A
- Power Consumption: Up to 10W without HDD
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% non-condensing
- Dimensions (H x L x W): 45mm x 315mm x 242mm
- Weight: 1.16 kg
Key Features
- AcuSense deep-learning motion detection for human and vehicle classification
- Supports up to 8MP recording for compatible high-resolution CCTV cameras
- Hybrid compatibility with HDTVI, AHD, HDCVI, CVBS and IP cameras
- H.265 Pro+ compression helps reduce storage and bandwidth requirements
- Supports Hik-Connect for remote viewing and management
- Perimeter protection and smart event detection functions
- One SATA bay supports an optional HDD up to 10TB
- Supplied without an HDD for flexible storage selection
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security or CCTV technician. Configure the complete video surveillance system in accordance with AS/NZS 62676 guidance and applicable electrical requirements.
Applications
- Residential CCTV security systems
- Small commercial premises and offices
- Retail stores and warehouses
- Security monitoring for workshops and light industrial sites
- Upgrading analogue CCTV systems to AcuSense-enabled recording
Standards & Compliance
- Applicable CCTV system guidance: AS/NZS 62676.1.1:2020
- Applicable CCTV application and installation guidance: AS/NZS 62676.4:2020
Environmental Benefits
- H.265 Pro+ compression can reduce recording storage requirements and associated data-processing demand
- Optional, user-replaceable HDD allows storage capacity to be upgraded without replacing the recorder
- Long-service electronic hardware can reduce replacement frequency when maintained correctly
- Electronic components should be recycled through an appropriate e-waste collection service at end of life
Warranty Information
Hikvision 7 Series DVR products are covered by a standard 24-month manufacturer warranty, subject to the applicable regional warranty terms and authorised-channel purchase conditions.
Available Now
Available through Hikvision and authorised Australian security equipment distributors, subject to regional model and stock availability.
